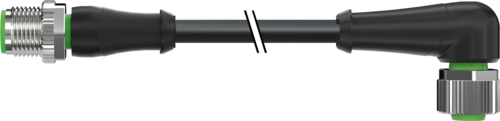

Murr M12 male 0° straight/female 90°, 4-pole, black, 2.5m

Product Overview

The Murrelektronik M12 connection cable features M12 male straight to M12 female 90° A-coded connectors with a 2.5-meter PUR cable. Designed for medium-distance industrial automation signal transmission where angled connections and flexibility are required, it provides reliable connections for sensors and actuators in space-constrained installations with UL/CSA certification and drag chain capability.

Key Features

• M12 male straight to M12 female 90° A-coded configuration
• 2.5-meter PUR cable with superior flexibility and drag chain capability
• 4x0.34mm² conductors for reliable signal transmission
• UL/CSA certified with IP67 protection rating
• 90° female connector for space-saving installations
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40121-6340250
• Cable Length: 2.5 meters
• Conductor Specification: 4x0.34mm² (#22 AWG)
• Cable Type: PUR (Polyurethane), black jacket
• Connector Configuration: M12 male straight to M12 female 90°

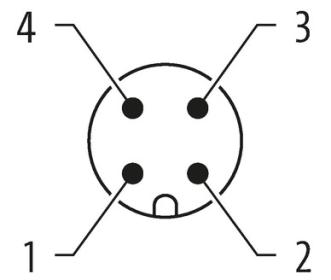

• Coding: A-coded
• Protection Rating: IP67
• Certification: UL/CSA approved
• Features: Drag chain capable

Applications

• Medium-distance installations requiring angled connections with flexibility
• Equipment with limited clearance needing dynamic capability
• Panel-mounted devices requiring extended 90° cable routing
• Dynamic automation applications with moderate reach requirements
• Process control applications requiring angled routing and movement over distances

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• 90° female connector saves installation space
• PUR cable provides superior flexibility for dynamic applications
• Medium length with drag chain capability for versatile moving systems

Download existing graphical data for this product:

• Data Sheet
