Murr M12 male 0° / M12 female 0°, A-code, shielded, 4-pole, 2m

Product Overview

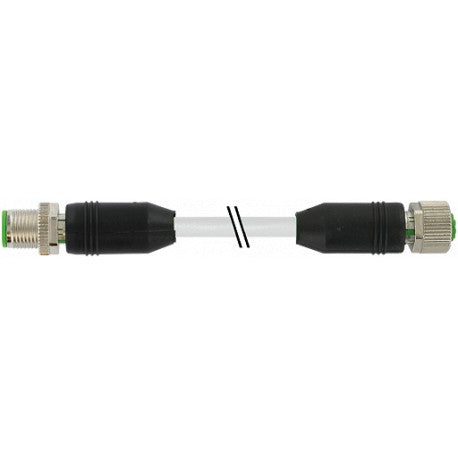

This M12 shielded data connection cable (SKU: 7000-40501-3310200) features male straight (0°) connector and female straight (0°) connector, both with A-coding for reliable data transmission in industrial automation applications. The 2-meter cable with PVC jacket includes electromagnetic shielding for superior signal integrity and noise immunity in demanding industrial environments.

Connector Configuration:

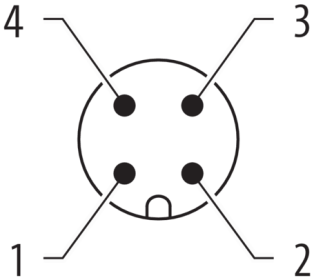

• Male connector: M12, 4-pole, 0° straight, A-coded

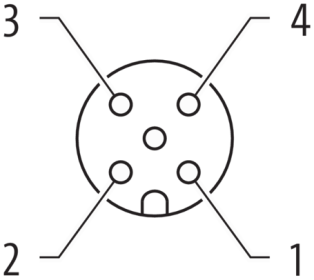

• Female connector: M12, 4-pole, 0° straight, A-coded
• Thread: M12 x 1mm, self-securing
• Tightening torque: 0.6 Nm
• Protection degree: IP66K, IP67
• Width across flats: SW13

Shielding & Data Transmission:

• Shielding: Electromagnetic interference (EMI) protection
• Signal integrity: Enhanced noise immunity
• Data applications: Industrial communication protocols
• Shielding coverage: 360° electromagnetic protection
• Grounding: Proper shield termination for optimal performance

Cable Properties:

• Material: PVC jacket with shielded construction
• Cross-section: 4 x 0.34 mm²
• Color: Gray
• Length: 2 meters
• Outer diameter: Approximately 5.5 mm (with shielding)
• Wire arrangement: Brown, black, blue, white + shield
• Shielding: Braided or foil shield construction

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Nominal voltage: 300V AC max.
• AC withstand voltage: 2.5 kV @ 60s (wire-wire and wire-jacket)
• Electrical resistance: 57 Ω/km @ 20°C
• Conductor: Stranded copper wire (class 6)
• Shield resistance: Low-impedance grounding path

Environmental Performance:

• Operating temperature (static): -40°C to +80°C
• Operating temperature (dynamic): -25°C to +80°C
• Bending radius (fixed): 6 x outer diameter (due to shielding)
• Bending radius (dynamic): 12 x outer diameter (due to shielding)
• UV resistance: Good with PVC jacket
• Chemical and oil resistance: Good (application testing recommended)

Dynamic Applications:

• Drag chain compatible with proper support
• Bending cycles: Reduced due to shielding requirements
• EMI environments: Excellent performance in electrically noisy environments
• Industrial communication: Suitable for data transmission protocols

Material & Construction:

• Connector housing: Zinc die-cast, nickel-plated
• Jacket material: PVC (Polyvinyl Chloride)
• Shielding: Professional-grade electromagnetic protection
• Material compliance: Lead-free, cadmium-free, CFC-free

Standards & Certifications:

• Product standard: DIN EN 61076-2-101 (M12)
• UL/CSA certified
• EMC compliance: Enhanced electromagnetic compatibility
• Material group: IEC 60664-1, category I
• Pollution degree: 3

Applications Designed for industrial data communication applications requiring electromagnetic interference protection. Ideal for sensor networks, industrial communication systems, and automation environments with high electrical noise levels. The shielding provides superior signal integrity for reliable data transmission in electrically demanding industrial settings.

Download existing graphical data for this product:

Product Datasheet
