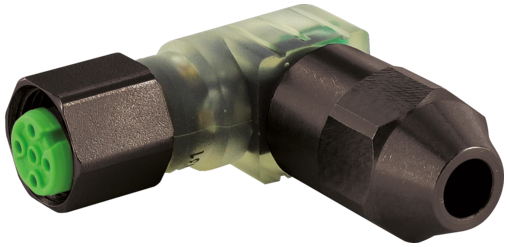

Murr M12 Connector, female 0°, 4-pole, c/s 0.24 - 0.5mm²

Product Overview

M12 female field-wireable connector with integrated status indication (SKU: 7003-12691-0000000) designed for signal applications requiring visual feedback in industrial automation systems. This 90° angled connector features IDC termination technology with 3 LED indicators and accommodates 0.25-0.5mm² conductors for reliable field assembly with enhanced diagnostic capabilities.

Key Features

• M12 female 90° angled connector with industrial-grade housing
• Integrated 3 LED status indicators (PNP) for visual feedback
• IDC (Insulation Displacement Connection) termination technology

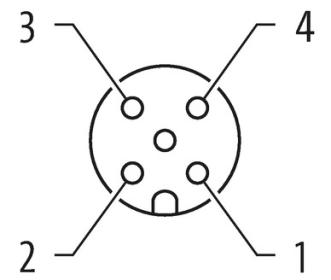

• 4-pole configuration for standard signal applications
• Wire capacity: 0.25-0.5mm² per terminal
• 90° angled design for space-saving installations
• Field-wireable design eliminates specialized crimping tools
• Chemical and oil resistant construction

Technical Specifications

• Connector Type: M12 female 90° angled, 4-pole
• LED Indicators: 3 × LED (PNP) for status indication
• Termination Method: IDC (Insulation Displacement Connection)
• Wire Capacity: 0.25-0.5mm² per terminal
• Protection Rating: IP67/IP68 (when properly assembled)
• Operating Temperature: Industrial temperature range
• Contact Material: Gold-plated for corrosion resistance
• Cable Outlet: 90° angled for space-constrained installations

Applications

• Sensor connections requiring status indication in tight spaces
• Industrial automation with visual diagnostic requirements
• Machine monitoring systems needing LED feedback
• Process control applications with space constraints
• Equipment interfaces requiring connection status visibility
• Maintenance and troubleshooting applications with visual indicators
• Custom sensor installations requiring field termination and status display

Compliance & Standards

• Industrial-grade construction for harsh environments
• Chemical and oil resistant materials
• IDC termination for reliable field installation
• LED indication for enhanced diagnostic capabilities
• RoHS compliant materials

Download existing graphical data for this product:

Product Datasheet
