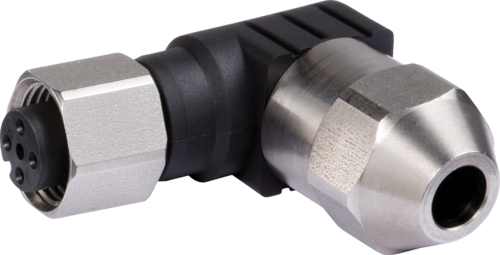

Murr M12 Connector, male 90°, 4-pole, c/s 0.25 - 0.5mm²

Product Overview

M12 female field-wireable connector with V2A stainless steel construction (SKU: 7002-12681-0000000) designed for signal applications in food & beverage and hygienic industrial environments. This 90° angled connector features IDC termination technology accommodating 0.25-0.5mm² conductors for reliable field assembly in space-constrained sanitary applications.

Key Features

• M12 female 90° angled connector with V2A stainless steel housing
• IDC (Insulation Displacement Connection) termination technology
• 4-pole configuration for standard signal applications
• Wire capacity: 0.25-0.5mm² per terminal
• Food & beverage industry optimized design
• Corrosion-resistant stainless steel 1.4305 (V2A) construction
• 90° angled design for space-saving installations
• Field-wireable design eliminates specialized crimping tools

Technical Specifications

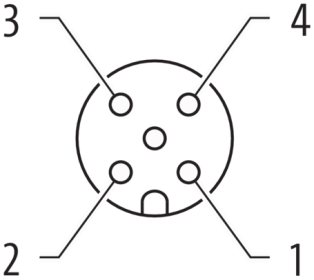

• Connector Type: M12 female 90° angled, 4-pole
• Housing Material: Stainless steel 1.4305 (V2A)
• Termination Method: IDC (Insulation Displacement Connection)
• Wire Capacity: 0.25-0.5mm² per terminal
• Protection Rating: IP67/IP68 (when properly assembled)
• Operating Temperature: Industrial temperature range
• Contact Material: Gold-plated for corrosion resistance
• Cable Outlet: 90° angled for space-constrained installations

Applications

• Food & beverage processing equipment in tight spaces
• Hygienic industrial automation with space constraints
• Washdown environments requiring angled connector orientation
• Chemical processing with limited installation clearance
• Pharmaceutical manufacturing in compact equipment designs
• Clean room installations requiring sanitary right-angle connections
• Marine applications with space limitations requiring corrosion resistance

Compliance & Standards

• V2A stainless steel construction for hygienic applications
• Food & beverage industry compliant materials
• Corrosion-resistant design for harsh chemical environments
• IDC termination for reliable field installation
• RoHS compliant materials

Download existing graphical data for this product:

Product Datasheet
