Murr M12 male 0° / M12 female 0° A-code, 8-pole, 10m

Product Overview

Industrial signal extension cable (SKU: 7000-48001-7220075) featuring M12 male straight connector to M12 female straight connector with A-coding. This compact high-quality 8-pole cable assembly is designed for sensor and actuator signal transmission in industrial automation applications where space is limited.

Key Features

• M12 male connector (0° straight) to M12 female connector (0° straight)
• A-coded for sensor and actuator signal applications
• 8-pole configuration for multi-signal transmission
• PVC cable jacket for cost-effective industrial applications
• UL/CSA certified for North American installations
• IP67 protection rating when connectors are mated
• Gray cable color for signal identification
• Compact 0.75-meter length for short-distance connections

Technical Specifications

• Connector Type: M12 x 1 threaded (male to female)

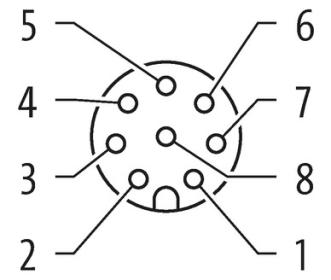

• Coding: A-coded (8-pole signal)
• Cable Length: 0.75 meters (75 cm)
• Wire Configuration: 8 x 0.25mm² multi-conductor cable
• Wire Gauge: 0.25mm² stranded copper conductors
• Cable Type: PVC (Polyvinyl Chloride) jacketed
• Operating Voltage: 30V AC/DC maximum (30V AC/DC UL listed)
• Rated Surge Voltage: 0.8 kV
• Operating Current: 2A maximum per contact
• Operating Temperature: -25°C to +80°C (cable dependent)
• Protection Rating: IP65/IP66K/IP67 when properly mated

Cable Construction

• Wire Count: 8 conductors
• Wire Colors: Brown, White, Blue, Black, Gray, Pink, Violet, Orange
• Wire Insulation: PP (Polypropylene)
• Jacket Material: PVC with UL/CSA approval
• Connector Material: Zinc die-cast, nickel-plated
• Locking: Screw thread (M12×1 mm) recommended torque 0.6 Nm

Applications Ideal for short-distance multi-signal sensor and actuator connections:

• Short-range sensor signal transmission
• Control panel to device connections
• Industrial automation control systems
• Machine control and monitoring applications
• Process control signal distribution
• Compact installation signal networks

Compliance & Standards

• UL Listed - Signal cable assemblies for industrial control
• CSA certified for Canadian installations
• CE conformity marking
• RoHS compliant
• IEC 60664-1 Category I material group
• DIN EN 61076-2-101 (M12) standards compliance
• CFC-free, cadmium-free, silicone-free materials
