Murr M12 male 0°/female 0° shielded AIDA, 5-pole, 1.5m Part number 7030-40521-0420150

Product Overview

M12 shielded connection cable (SKU: 7030-40521-0420150) designed for industrial automation applications conforming to AIDA standards. This A-coded shielded connection cable features M12 male straight to M12 female straight connectors with 1.5 meters of yellow PUR cable for reliable signal transmission between sensors, actuators, and control systems in construction and industrial environments requiring EMI protection.

Key Features

• M12 male straight (0°) to M12 female straight (0°) A-coded connectors
• AIDA conform design meeting construction industry standards
• Shielded cable construction for EMI protection
• 1.5-meter yellow PUR cable for extension applications
• 5-pole configuration with 5 × 0.34mm² conductors
• UL/CSA certification with drag chain capability
• Plastic housing with good resistance against chemicals and oils
• Gold-plated contacts ensuring optimum conductivity
• Ready-to-use shielded extension cable for immediate installation

Technical Specifications

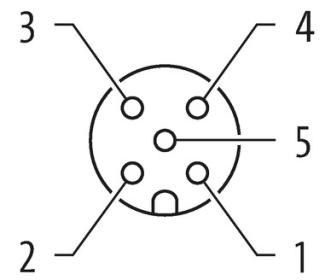

• Connector 1: M12 male straight (0°) A-coded, 5-pole
• Connector 2: M12 female straight (0°) A-coded, 5-pole
• Cable Length: 1.5 meters

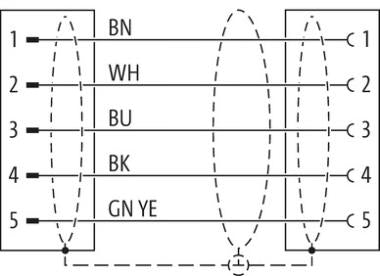

• Wire Configuration: 5 × 0.34mm² stranded copper with shield
• Cable Type: PUR (Polyurethane) jacket, yellow color, shielded
• Operating Temperature: Standard industrial temperature range
• Housing Material: Plastic construction with chemical resistance
• Drag Chain Capability: Suitable for dynamic applications
• Protection Rating: IP67 (when properly mated)

Applications

• Signal extension in automation systems requiring EMI protection
• AIDA compliant construction industry applications
• Equipment connections in electrically noisy environments
• Control system signal distribution with electromagnetic interference concerns
• Sensor and actuator extension requiring signal integrity protection
• Dynamic applications requiring drag chain compatibility with shielding

Compliance & Standards

• AIDA conform design for construction industry compliance
• UL/CSA certified construction
• A-coding compliant with IEC 61076-2-101 standards
• Chemical and oil resistant construction
• Drag chain certified for dynamic applications
• Shielded construction for EMI protection
• 100% tested during manufacturing process
