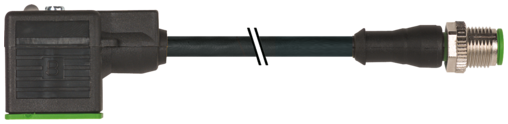

Murr M12 male 0° A-coded/MSUD valve plug A, 18mm, PUR 3x0.75

Product Overview

This M12 to MSUD valve plug connection cable (SKU: 7000-40881-6360500) features male M12 straight (0°) connector and MSUD valve plug Form A (18mm) for reliable signal transmission between automation control systems and pneumatic/hydraulic valves. The 5-meter cable with black PUR jacket provides robust connectivity for valve control applications in industrial automation systems.

Connector Configuration:

• Input connector: M12, 3-pole, 0° straight, A-coded (male)

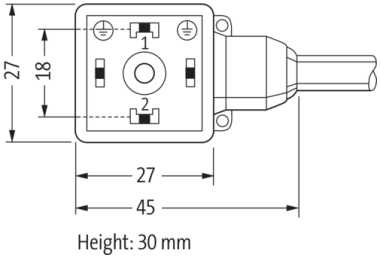

• Output connector: MSUD valve plug, Form A (18mm diameter)
• Thread: M12 x 1mm (input), self-securing
• Tightening torque: 0.6 Nm
• Protection: IP67 (M12), IP65 (valve plug)
• Housing: Plastic with chemical/oil resistance

Valve Connector Specifications:

• Form: MSUD Form A (18mm diameter)
• Voltage rating: 24V AC ±20% / DC ±25%
• Application: Pneumatic and hydraulic valve control
• LED indicator: Integrated status indication
• Suppression: Built-in electrical noise suppression

Cable Specifications:

• Material: PUR jacket
• Cross-section: 3 x 0.75 mm²
• Color: Black
• Length: 5 meters
• Wire arrangement: Brown, black, blue
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)
• Drag chain certified

Electrical Characteristics:

• Operating voltage: 230V AC/DC ±10%
• Current rating: Higher capacity for valve applications
• Conductor: Stranded copper wire, larger gauge for valve control
• Electrical resistance: Optimized for valve switching applications

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Excellent for hydraulic/pneumatic environments
• Drag chain compatibility: Certified for dynamic applications

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Valve plug: MSUD standard Form A construction
• Jacket material: PUR (Polyurethane) - black color
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12) compliant
• MSUD valve standard compliance
• Material compliance: Lead-free, cadmium-free, CFC-free
• Material group: IEC 60664-1, category I
• Drag chain compatible

Applications

Designed for industrial automation environments requiring control connections between M12 automation systems and MSUD standard pneumatic or hydraulic valves. Ideal for valve control applications, fluid power systems, and automated machinery where M12 control signals need to interface with standard 18mm valve connectors. The 5-meter length provides flexibility for distributed valve control installations.
