xProduct Overview
The Murrelektronik M12 female straight connector is a pre-assembled cordset with integrated LED status indication for industrial sensor and actuator applications. This A-coded connector features a 5-meter PUR cable with 3x0.34mm² conductors and dual LED indicators (PNP), providing reliable connectivity with visual feedback in industrial automation environments.
Key Features
- M12 female 0° straight connector with A-coding and LED status indication
- 5-meter PUR cable with drag chain capability
- 3x0.34mm² conductors for signal transmission
- Dual LED indicators (2× LED PNP) for visual monitoring
- UL/CSA certification
- Gold-plated contacts for optimum conductivity
- Open-ended wire termination for flexible connections
Technical Specifications
- Article Number: 7000-12261-6130500

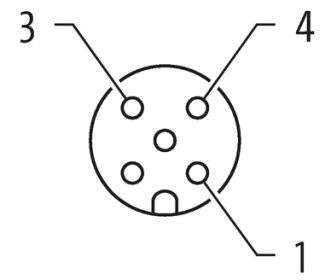

- Connector Type: M12 female 0° straight, A-coded
- Cable Length: 5 meters
- Conductor Specification: 3x0.34mm² PUR cable
- Voltage Rating: Up to 250V AC
- Current Rating: 4A maximum
- Operating Temperature: -20°C to +85°C

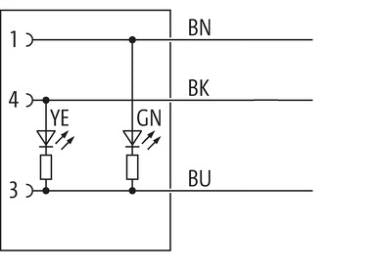

- LED Function: 2× LED (PNP) for status indication
- Protection Rating: IP67 when mated
Applications
- Industrial sensor and actuator connections with visual status feedback
- Machine control signal transmission with LED monitoring
- Factory automation sensor networks requiring status indication
- Process control applications with diagnostic requirements
Standards and Compliance
- Certification: UL/CSA approved for North American markets
- Drag Chain Standards: Certified for dynamic flex applications
- Quality Standards: German engineering and manufacturing
- Protection Standards: Industrial-grade environmental protection with IP67 rating
Benefits
- Pre-assembled construction eliminates field termination errors
- LED indicators provide immediate visual status feedback
- PUR cable offers superior flexibility and chemical resistance
- Drag chain capability for moving machinery applications
- Gold-plated contacts ensure long-term reliable connectivity
Download existing graphical data for this product:
Specifications
x| IP Rating / Detailed | IP65 |
| Tariff | 85444290 |
| GTIN | 4048880000000.0 |
| ETIM | EC001855 |
| Temperature: Operating Min | -30.0°C |
| Temperature: Operating Max | 85.0°C |
| Stripping Length (mm) | 20.0mm |
| Thread | M12 |
| Tightening Torque | 0 |
| Nominal Voltage | 300.0 |
| Interface | green |
| Mounting Type | inserted |
| Current load capacity | to |
| Current Rating / Rated Current | 4.0 |
| Packaging size / unit | 1 |
| Material: Housing / Grip | contact |
| Material: Jacket / Cover Nut | PVC |
| Material: Sensing Surface / Contacts | gold |
| Material: Wire Insulation | PVC |
| Material: Screw / connection | Zinc |
| Cable Type | 1.0 |
| Communication | M12 |
| Stranding | 1 |
| Wire arrangement | brown |
| Bending radius (fixed) | 5.0 |
| Bending radius (dynamic) | 10.0 |
| Operating Voltage Min | 18.0 |
| Voltage Frequency Range | withstand |
| Operating Voltage Max | 30.0 |
