Murr M12 Adaptor on top of MSUD valve plug, 5-pole

Product Overview

This M12 to MSUD valve plug adapter (SKU: 7000-41321-0000000) features a 5-pole male M12 top-entry connector converting to an MSUD valve plug Form A (18mm) specifically designed for pressure switch applications. The adapter operates at 24V DC ±25% and includes integrated LED status indicators (yellow/green) for visual monitoring of pressure switch states.

Connector Configuration:

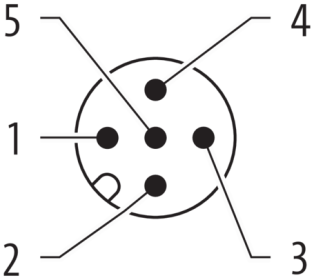

• Input: M12, 5-pole, top entry, A-coded (male)
• Output: MSUD valve plug Form A, 18mm diameter
• Voltage Rating: 24V DC ±25%
• Protection: IP67 when mated
• Housing: Impact-resistant plastic

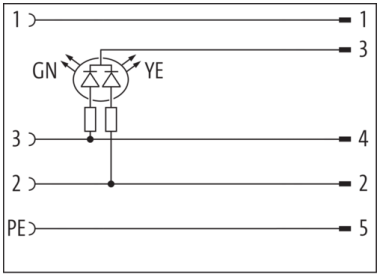

• LED Indicators: Yellow/Green status indication

Pressure Switch Adapter Design:

• Configuration: M12 male to MSUD valve plug conversion
• Topology: Top-entry M12 connection to pressure switch interface
• Signal conversion: M12 sensor signals to pressure switch monitoring
• Application: Specifically designed for pressure switch applications
• LED Status: Dual-color visual indication for pressure monitoring

Electrical Characteristics:

• Operating voltage: 24V DC ±25%
• Current rating: Suitable for pressure switch applications
• LED function: Yellow/Green status indicators
• Number of poles: 5-pole configuration
• Contact material: Nickel-plated contacts

Environmental Performance:

• Operating temperature: -25°C to +85°C
• Protection rating: IP67 (when mated)
• Chemical resistance: Good resistance to chemicals and oils
• Media compatibility: Suitable for industrial pressure applications
• Individual testing recommended for aggressive media

Material & Construction:

• Housing: Impact-resistant plastic construction
• Contact plating: Nickel-plated for corrosion resistance
• Valve interface: MSUD Form A (18mm) standard
• Material compliance: RoHS compliant

Applications

Specifically designed for pressure switch monitoring applications in industrial automation systems. Ideal for converting M12 control signals to standard MSUD valve plug connections for pressure switches in pneumatic and hydraulic systems. Perfect for process control, manufacturing automation, and fluid monitoring applications where reliable pressure switch connectivity with visual status indication is required.

Download existing graphical data for this product:

Product Datasheet
