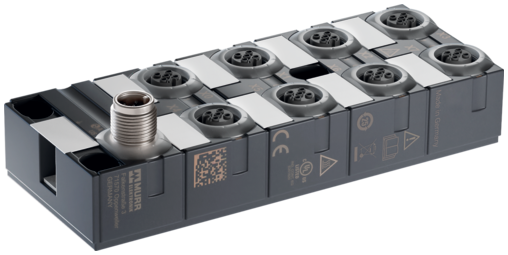

Murr IO-link hub, class A, 16 digital inputs/outputs

Product Overview

The Murrelektronik MVP12-P6 is an IO-Link Class A hub designed for distributed I/O applications in industrial automation systems. This compact 50mm plastic housing module features 16 configurable digital inputs/outputs with 8x M12 connections and 1x M12 IO-Link Class A port. Supporting IO-Link V1.1.2 specification with extended parameter range (E0 version), this hub provides flexible and efficient sensor/actuator connectivity for advanced automation applications with IP68 protection rating.

Key Features

• IO-Link Class A hub with 16 configurable digital I/O channels
• Compact 50mm plastic housing for space-efficient installations
• 8x M12 I/O connections (A-coded) for sensor/actuator connectivity
• 1x M12 IO-Link Class A communication port
• IO-Link V1.1.2 compatible (also compatible with V1.1.3)
• Extended parameter range configuration (E0 version)
• IP68 protection rating for harsh industrial environments
• LED status indicators for power supply and diagnostics
• Wide operating temperature range (-25°C to +70°C)
• 2-hole screw mounting for secure installation

Technical Specifications

• Model: MVP12-P6 DIO16 8xM12A IOLA12 E0
• Article Number: 59819
• I/O Configuration: 16 configurable digital inputs/outputs
• IO-Link Class: Class A
• Protection Rating: IP68
• Housing Type: 50mm plastic housing
• Operating Voltage: 24V DC (18-30V DC), max. 4A
• Current Consumption: max. 40mA

Connection Specifications

• I/O Connections: 8x M12 female connectors (A-coded)
• IO-Link Communication: 1x M12 IO-Link Class A port
• I/O Configuration: 16 configurable digital inputs/outputs
• Switching Current per Output: max. 0.5A
• Input Filter: 0-15ms adjustable
• IO-Link Specification: V1.1.2 (compatible with V1.1.3)
• Communication Mode: COM3 (230.4 kBaud)
• Port Class: A

Applications

• Distributed I/O systems in factory automation
• Machine control applications requiring flexible I/O configuration
• Industrial sensor and actuator connectivity hubs
• IO-Link based automation systems
• Process control installations requiring IP68 protection
• Manufacturing equipment with space-constrained installations
• Advanced automation systems with parameter configuration needs

Standards and Compliance

• IO-Link Standards: IO-Link V1.1.2 specification compliant
• Protection Standards: IP68 environmental protection rating
• Installation Standards: Maximum 3000m above sea level
• Safety Standards: Industrial automation safety requirements
• Quality Standards: German engineering and manufacturing

Benefits

• Configurable digital I/O provides maximum application flexibility
• IO-Link connectivity enables advanced device diagnostics and parameterization
• Compact 50mm housing optimizes control cabinet space utilization
• IP68 protection ensures reliable operation in harsh environments
• Extended parameter range (E0) allows for advanced configuration options
• LED diagnostics provide immediate visual status feedback
• Wide temperature range supports diverse industrial applications

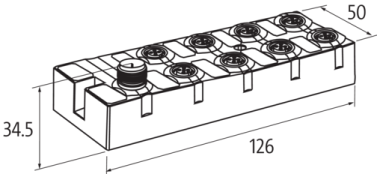

Physical Specifications

• Housing: 50mm plastic construction
• Protection Rating: IP68
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Installation Height: max. 3000m above sea level
• Mounting Method: 2-hole screw mounting
• LED Indicators: US-IOL sensor power supply status (green: OK)
• Input/Output Protection: Short-circuit and overload protection

IO-Link Specifications

• Device Type: IO-Link Device
• Port Class: A
• Communication Speed: COM3 (230.4 kBaud)
• Minimum Cycle Time: As per IO-Link V1.1.2 specification
• Parameter Range: Extended (E0 version)
• Device Configuration: Type 1 + Type 3 compatibility

Download existing graphical data for this product:

• Product Specification Sheet
