Product Overview

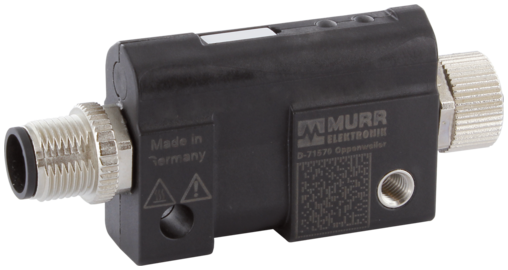

The Murrelektronik IO-Link analog converter is a multi-thermocouple interface device designed for industrial temperature measurement applications. This converter enables seamless integration of various thermocouple types into IO-Link communication networks, providing high-precision 16-bit resolution temperature monitoring with IP65/IP67 protection rating and M12 straight connector configuration for reliable digital data transmission.
Key Features
Technical Specifications
Electrical Characteristics
Communication Features
Environmental Specifications
Standards and Compliance
Applications
Benefits
Download existing graphical data for this product:
IP Rating / Detailed | IP65 |
Tariff | 85437090 |
GTIN | 4048880000000.0 |
Temperature: Operating Min | -30.0°C |
Temperature: Operating Max | 70.0°C |

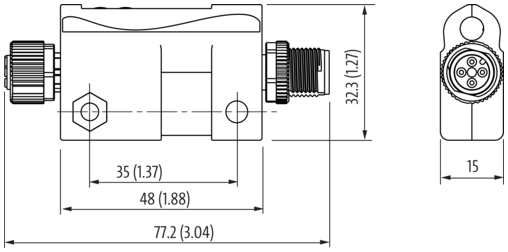

Part Depth (mm) | 15.0mm |
Part Width (mm) | 77.0mm |
Part Height (mm) | 32.0mm |
IO-Link process data length input | 2.0 |
Packaging size / unit | 1 |
Material: Housing / Grip | data |

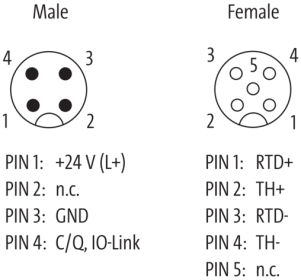

Communication | M12 |
Operating Voltage Min | 18.0 |
Operating Voltage Max | 30.0 |
