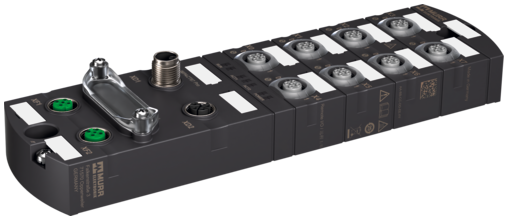

Murr Impact67 IO-link module, Profinet, DIO8, IOL8, M12, 4 pole

Product Overview

The Murrelektronik IMPACT67 Pro PN DIO8 IOL8 M12L 4P is a PROFINET-enabled compact I/O module with integrated IO-Link master functionality. This plastic-housed module combines digital inputs/outputs with eight multifunctional IO-Link master ports for decentralized automation applications.

Key Features

• PROFINET protocol with Ethernet 10/100 Mbit/s communication
• 8x multifunctional IO-Link Master ports (V1.1.3 compliance)
• Digital inputs/outputs with configurable pin functionality
• IIoT connectivity via OPC UA, JSON REST API, and MQTT protocols
• Intelligent power management with current limiting per pin
• IP67 protection rating with compact plastic housing

Technical Specifications

• Model: IMPACT67 Pro PN DIO8 IOL8 M12L 4P
• Article Number: 54620

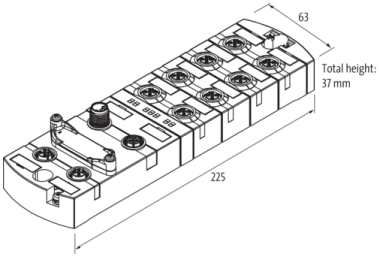

• Housing: Compact plastic, IP67 protection
• Fieldbus: PROFINET via 2x M12, 4-pole, D-coded
• Operating Temperature: -25°C to +70°C
• Supply: 2x M12 Power, L-coded, 4-pole, 24V DC

Electrical Characteristics

• Supply Voltage: 24V DC (EN 61131-2)
• Maximum Current: 2x 16 A per power connection
• Output Current: Max 2 A per pin, 4 A per port
• Power Management: Adjustable 0.5-2 A per pin
• Protection: Short-circuit and overload protected

IO-Link Master Features

• Ports: 8x M12, 5-pole, A-coded connections
• Classification: Class A/B with common ground
• Cycle Time: Minimum 400 μs synchronized operation
• Pin Functions: Configurable DI, DO, UA, IOL with supply switching

Applications

• PROFINET-based industrial automation systems
• Decentralized I/O with IO-Link device integration
• Machine control systems with IIoT connectivity
• Process monitoring and diagnostic applications

Standards and Compliance

• IO-Link: V1.1.3 specification compliance
• Communication: PROFINET protocol standards
• Protection: IP67 environmental rating
• Supply: EN 61131-2 compliance

Benefits

• Manufacturer-independent IO-Link device compatibility
• Integrated energy monitoring for predictive maintenance
• Cost-effective unshielded cordset installation
• Remote configuration via web interface
