Description

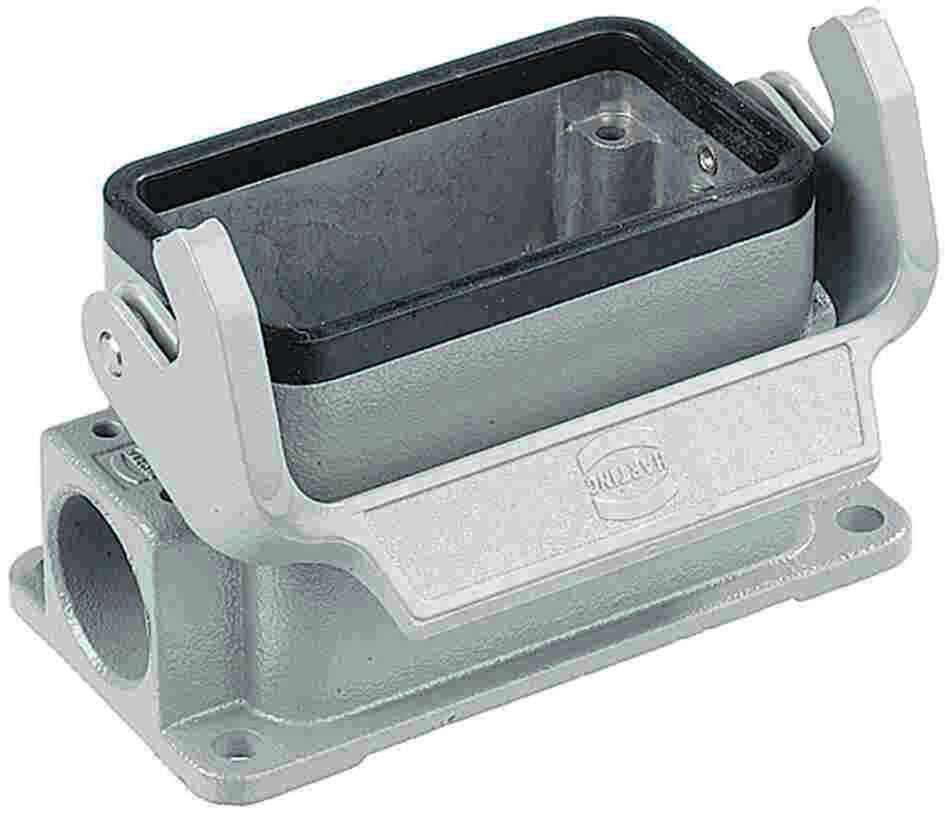

xThis surface housing is designed for size 24B Harting connector inserts, with side entry and single-lever locking for cable termination on panels and enclosures. The aluminium die-cast, powder-coated body and NBR seal provide an IP65-rated enclosure, suitable for use in industrial environments where dust and moisture ingress must be controlled. The locking mechanism combines PC and stainless steel components, and the housing material carries a V-0 flammability rating.
Key specifications
- IP rating: IP65
- Flammability: V-0
Specifications
x| IP Rating | IP65 |
| Tariff | 85389099 |
| GTIN | 5713140127128 |
| ETIM | EC000437 |
| Compliance/Certifications | UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 / CE DNV GL |
| Flammability | V-0 |
| Material: Housing / Grip | Aluminium die-cast / Powder-coated |
| Material: Seal | NBR |
| Material: Locking | PC / Stainless steel |
| Size | 24 B |
| Packaging Size | 1 pc(s) |
| Weight (g) | 317g |
Documents
