Description

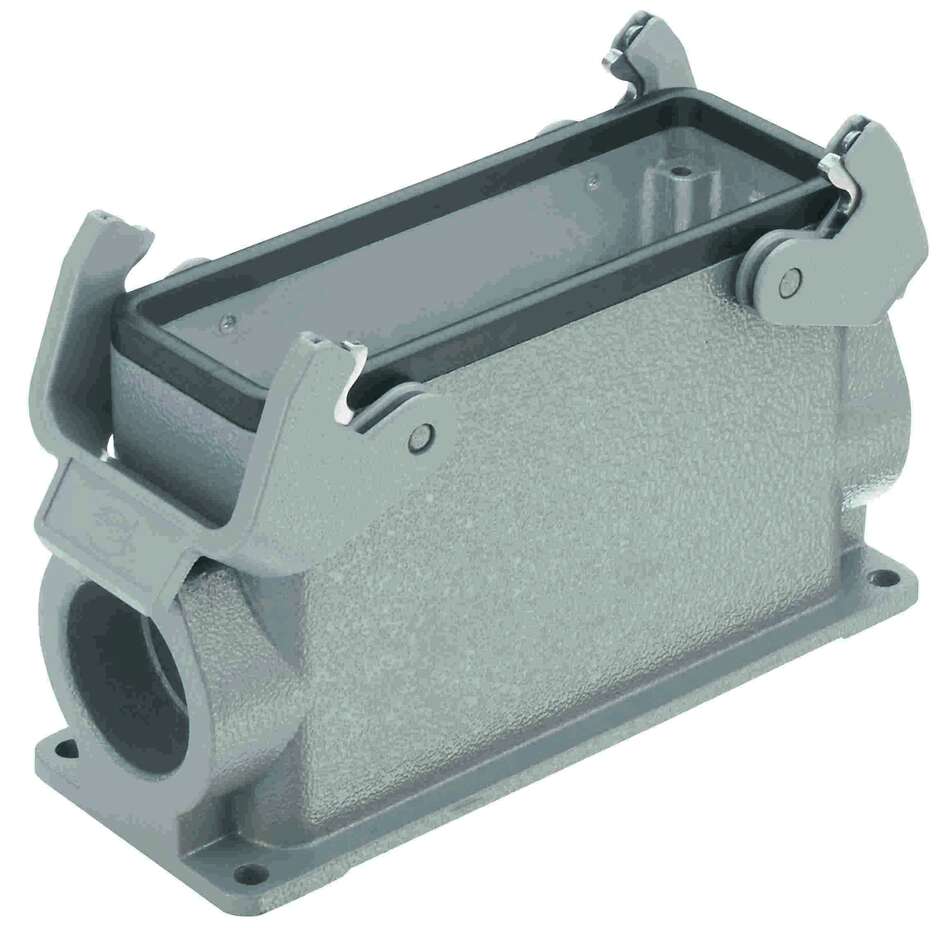

xThis surface housing is a side-entry enclosure with double locking, designed for use with heavy-duty industrial connectors of size 24 B. The aluminium die-cast body and NBR seal give it an IP65 rating, suitable for protecting connections in exposed panel and machine-mounted installations. Cable entry is provided via two M32 glands, and the locking mechanism combines PC and stainless steel components for secure connector retention.
Key specifications
- IP rating: IP65
- Connection: 2x M32
- Flammability: V-0
Specifications
x| IP Rating | IP65 |
| Tariff | 85389099 |
| GTIN | 5713140126619 |
| ETIM | EC000437 |
| Compliance/Certifications | UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 / CE DNV GL |
| Flammability | V-0 |
| Material: Housing / Grip | Aluminium die-cast |
| Material: Jacket / Cover Nut | |
| Material: Seal | NBR |
| Material: Locking | PC / Stainless steel |
| Size | 24 B |
| Weight (g) | 116g |
| Connection Type | 2x M32 |
Documents
