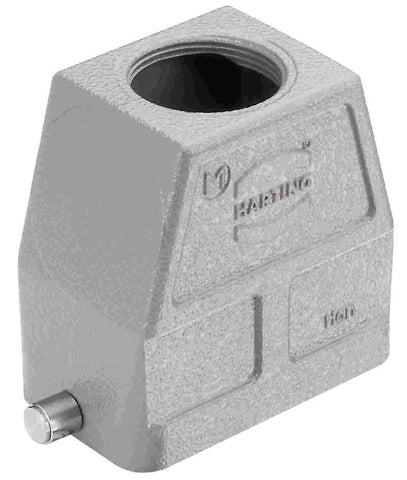

Harting Han B Hood, top entry, single locking, 1xM32, size 10B

Product Overview

The Han 10B-gg-R-M32 is a high construction connector hood for industrial applications requiring top entry cable routing with maximum cable capacity. Features aluminum die-cast construction with single locking lever and M32 top cable gland for heavy-duty applications requiring vertical cable access and largest cable diameter accommodation.

Key Features

• High construction hood design for maximum robustness
• Top entry configuration with single locking lever
• Size 10B with M32 top cable entry for largest cables
• Aluminum die-cast construction, RAL 7037 finish
• Single lever operation with maximum cable capacity
• IP65 protection, -40°C to +125°C operation

Technical Specifications

• Housing Size: 10B
• Construction: High construction (HC)
• Cable Entry: Top entry, 1 x M32
• Temperature Range: -40°C to +125°C
• Protection: IP65, NEMA 4/4X/12
• Material: Aluminum die-cast, powder-coated RAL 7037
• Locking: Single lever, polycarbonate and stainless steel
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• High construction for maximum durability
• Top entry design for vertical cable access
• M32 cable gland accommodates largest cable diameters
• Compatible with Han 10B series bases and inserts

Applications

• Heavy-duty applications requiring top cable access with maximum capacity
• Industrial systems needing vertical cable routing with largest cables
• Equipment requiring overhead cable management with M32 capacity
• High-power applications with top entry requirements

Compatibility

• Compatible with Han 10B series bases and inserts
• Part of Han B® connector system
• High construction hood for demanding applications

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast
• Durability: ≥500 mating cycles with maximum cable capacity

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
