Harting Surface housing, Single locking, 2x M25, size 16B

Product Overview

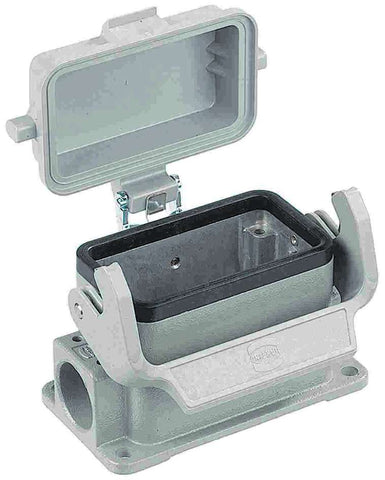

The Han B Base SM LC 2xM25 with plastic cover is a low construction surface mount connector base for industrial applications requiring minimal height profile with dual large cable capacity and integrated plastic cover protection. Features aluminum die-cast construction with plastic cover system optimized for space-constrained installations where both low profile design and dual M25 cable accommodation with cover protection are essential.

Key Features

• Surface mount (SM) design for direct panel installation
• Low construction (LC) for minimal height profile
• Dual M25 cable entries for enhanced cable capacity
• Size 16B with integrated plastic cover protection
• Aluminum die-cast construction, RAL 7037 finish
• IP65 protection, -40°C to +125°C operation

Technical Specifications

• Housing Size: 16B
• Construction: Low construction (LC), surface mount (SM)
• Cable Entry: 2 x M25 with plastic cover
• Temperature Range: -40°C to +125°C
• Protection: IP65, NEMA 4/4X/12
• Material: Aluminum die-cast with plastic cover, RAL 7037
• Cover: Integrated plastic cover system
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• Surface mount design for direct panel integration
• Low construction minimizes vertical space requirements
• Dual M25 cable entries for enhanced cable management flexibility
• Compatible with Han 16B series hoods and inserts

Applications

• Space-constrained panel installations requiring dual large cable capacity with protection
• Applications with height restrictions needing dual M25 accommodation and cover protection
• Systems requiring enhanced cable management with integrated cover functionality
• Industrial equipment needing efficient space utilization with dual large cable capacity

Compatibility

• Compatible with Han 16B series hoods and inserts
• Part of Han B® connector system
• Optimized for surface mount installations with dual large cables and cover protection

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast with plastic cover
• Durability: ≥500 mating cycles with integrated cover protection

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
