Harting Crimp contact, male, c/s 1mm², 16A

Product Overview

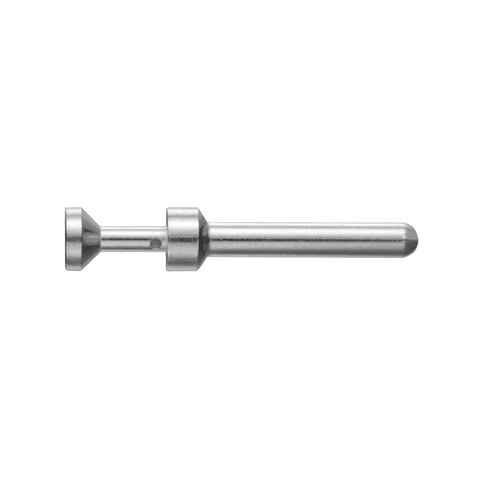

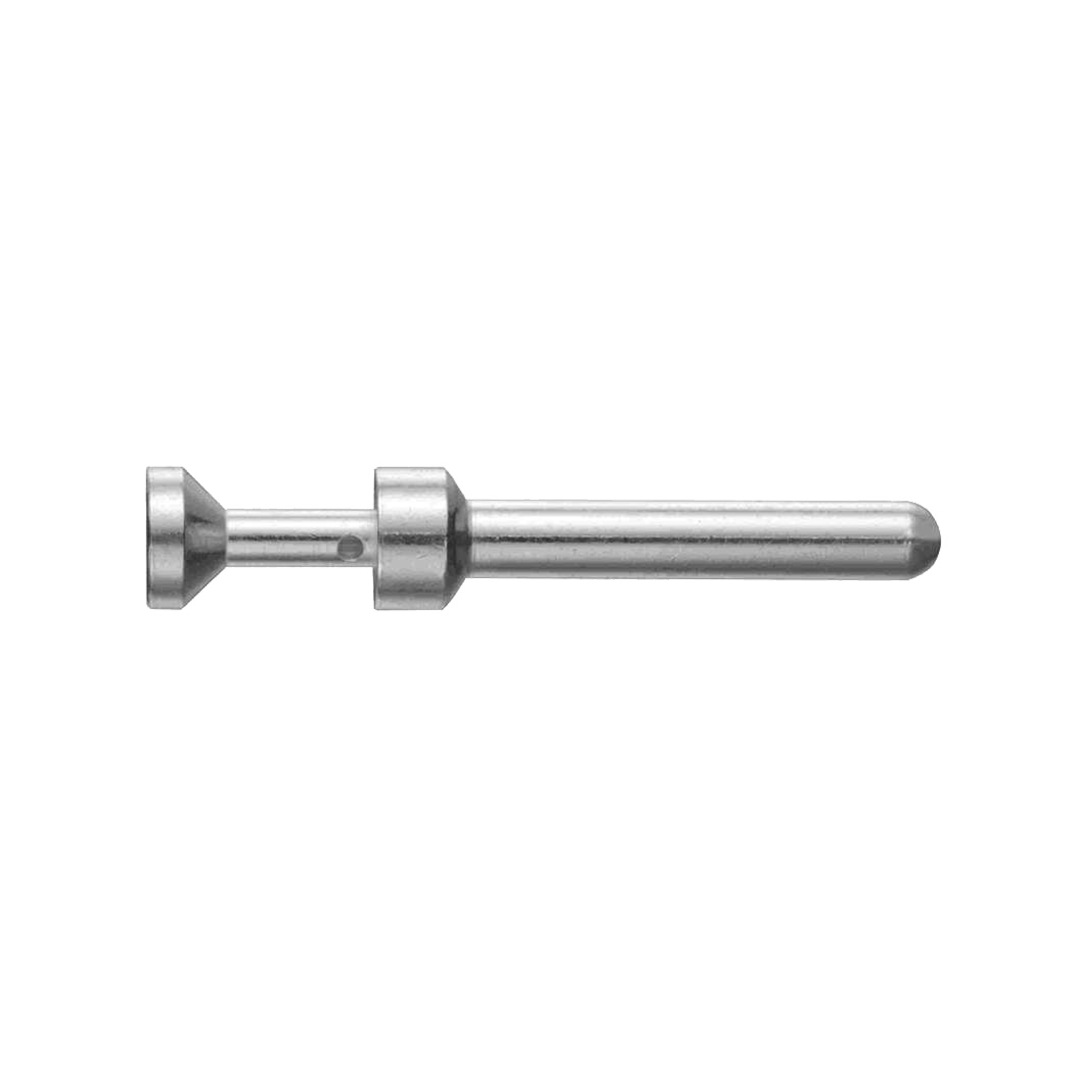

The Han E M Crimp Contact Ag 1.0 mm²/ 18 AWG (SKU: 09330006105) is a high-quality turned crimp contact designed for demanding industrial connectivity applications with smaller wire requirements. Part of the Han E® series, this male contact pin delivers reliable 16A current rating and is specifically engineered for 1.0mm² / AWG 18 wire cross-section terminations with silver plating for superior conductivity and corrosion resistance in industrial environments.

Key Features:

• High Current Capacity: 16A rating for demanding power applications
• Male Contact Pin: Turned contact design for reliable connections
• Silver Plated Finish (Ag): Superior conductivity and corrosion resistance
• 1.0mm² Wire Capacity: Crimp termination for 1.0mm² wire cross-sections
• AWG 18 Compatible: Designed for AWG 18 wire gauge applications
• Precision Manufacturing: High-quality turned contact construction
• Fine Wire Applications: Optimized for smaller conductor applications

Technical Specifications:

• Article Number: 09 33 000 6105
• Category: Contacts
• Series: Han E®
• Type of Contact: Crimp contact
• Gender: Male (pin)
• Current Rating: 16A
• Wire Cross-Section: 1.0mm²
• AWG Rating: AWG 18
• Contact Material: Copper alloy
• Contact Finish: Silver plated (Ag)
• Manufacturing Process: Turned contacts
• Contact Resistance: ≤1 mΩ (typical for Han E series)

Compliance & Certifications:

• Operating Temperature: -40°C to +125°C (typical Han E series)
• Rated Voltage: 500V (Han E series standard)
• Material Flammability: UL 94 V-0 rating
• Standards: EN 60664-1, IEC 61984
• Wire Range: Optimized for 1.0mm² / AWG 18 applications
• Industrial Standards: Suitable for demanding industrial applications

Applications:

Essential for Han E® series connector applications requiring reliable 16A current handling with smaller 1.0mm² wire terminations. Ideal for signal transmission applications, control systems, instrumentation connections, data acquisition systems, and Han-Modular® systems where precise male crimp termination contacts with fine wire capabilities are required for reliable signal and power transmission.

Compatibility:

• Insert Compatibility: Designed for use with Han E® series inserts
• Connector Systems: Compatible with Han-Modular® systems and Han E® connectors
• Wire Specifications: Specifically designed for 1.0mm² / AWG 18 wire cross-sections
• Mating Contacts: Works with Han E® female contacts for complete connections
• Crimp Tools: Requires appropriate parallel action crimp tool for optimal crimp quality
• System Integration: Essential component for Han E® connector assemblies

Installation & Tools:

• Recommended Crimp Tool: Precision parallel action crimp tool with appropriate dies for fine wire
• Crimp Quality: Professional crimping ensures maximum current carrying capacity and reliability
• Wire Preparation: Precise wire stripping length and preparation essential for fine wire connections
• Quality Control: Precision turned manufacturing ensures consistent performance with smaller conductors
• Assembly: Professional installation recommended for optimal electrical performance
• Connection Security: Designed for secure mating with corresponding female contacts
• Fine Wire Handling: Specialized techniques required for optimal 1.0mm²/AWG 18 termination
