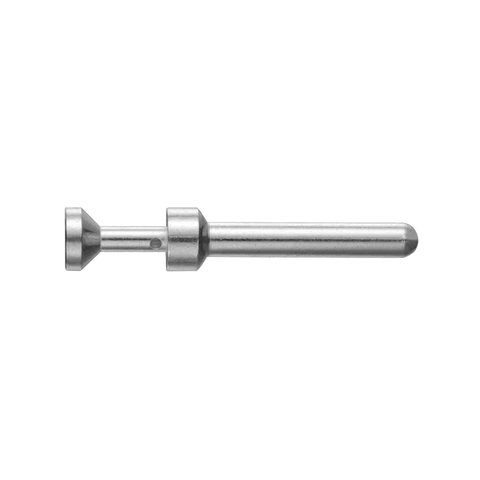

Harting Crimp contact, male, c/s 1.5 mm², 16A

Product Overview

The Han E M Crimp Contact Ag 1.5 mm²/ 16 AWG (SKU: 09330006104) is a high-quality turned crimp contact designed for demanding industrial connectivity applications. Part of the Han E® series, this male contact pin delivers reliable 16A current rating and is specifically engineered for 1.5mm² / AWG 16 wire cross-section terminations with silver plating for superior conductivity and corrosion resistance in industrial environments.

Key Features:

• High Current Capacity: 16A rating for demanding power applications
• Male Contact Pin: Turned contact design for reliable connections
• Silver Plated Finish (Ag): Superior conductivity and corrosion resistance
• 1.5mm² Wire Capacity: Crimp termination for 1.5mm² wire cross-sections
• AWG 16 Compatible: Designed for AWG 16 wire gauge applications
• Precision Manufacturing: High-quality turned contact construction
• Industrial Grade: Built for demanding Han E® connector applications

Technical Specifications:

• Article Number: 09 33 000 6104
• Category: Contacts
• Series: Han E®
• Type of Contact: Crimp contact
• Gender: Male (pin)
• Current Rating: 16A
• Wire Cross-Section: 1.5mm²
• AWG Rating: AWG 16
• Contact Material: Copper alloy
• Contact Finish: Silver plated (Ag)
• Manufacturing Process: Turned contacts
• Contact Resistance: ≤1 mΩ (typical for Han E series)

Compliance & Certifications:

• Operating Temperature: -40°C to +125°C (typical Han E series)
• Rated Voltage: 500V (Han E series standard)
• Material Flammability: UL 94 V-0 rating
• Standards: EN 60664-1, IEC 61984
• Wire Range: Optimized for 1.5mm² / AWG 16 applications
• Industrial Standards: Suitable for demanding industrial applications

Applications:

Essential for Han E® series connector applications requiring reliable 16A current handling with 1.5mm² wire terminations. Ideal for industrial automation systems, control panels, machinery interconnections, signal distribution equipment, and Han-Modular® systems where robust male crimp termination contacts are required for reliable power and signal transmission.

Compatibility:

• Insert Compatibility: Designed for use with Han E® series inserts
• Connector Systems: Compatible with Han-Modular® systems and Han E® connectors
• Wire Specifications: Specifically designed for 1.5mm² / AWG 16 wire cross-sections
• Mating Contacts: Works with Han E® female contacts for complete connections
• Crimp Tools: Requires appropriate parallel action crimp tool for optimal crimp quality
• System Integration: Essential component for Han E® connector assemblies

Installation & Tools:

• Recommended Crimp Tool: Parallel action crimp tool with appropriate dies for Han E contacts
• Crimp Quality: Professional crimping ensures maximum current carrying capacity and reliability
• Wire Preparation: Proper wire stripping length and preparation essential for reliable connection
• Quality Control: Precision turned manufacturing ensures consistent performance and reliable mating
• Assembly: Professional installation recommended for optimal electrical performance
• Connection Security: Designed for secure mating with corresponding female contacts
• Standard Wire Size: Optimized for most common 1.5mm² / AWG 16 applications
