Description

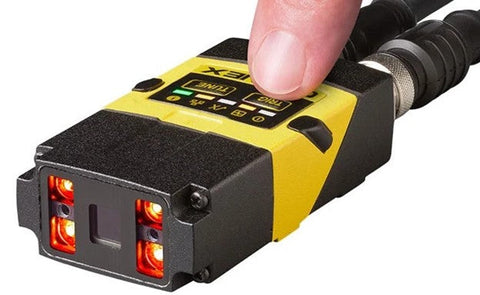

xThe Cognex DataMan DMR-262X-MAX-L is an image-based barcode reader, capable of reading 1D and 2D codes, even when damaged or poorly printed. Featuring modular lighting, it supports 752 x 480 and 1280 x 960 resolutions, with PowerGrid and 1DMax algorithms for reliable decoding in demanding applications.
Specifications
x| IP Rating | IP65 |
| Compliance/Certifications | Australia C-TICK / AS/NZS CISPR 22 / EN 55022 for Class A Equipment / Japan J55022 / Class A / KCC Safety: IEC 60950-1:2005 / 2nd Edition; Am 1:2009 |
| Compliance/Certifications | Australia C-TICK / AS/NZS CISPR 22 / EN 55022 for Class A Equipment / Japan J55022 / Class A / KCC Safety: IEC 60950-1:2005 / 2nd Edition; Am 1:2009 |
| Country of Origin | America |
| Communication | RS-232 and Ethernet Interface |
| Lighting | Modular/field configurable / lighting: Four independently controled, high-power LEDs (Red, White, Blue, IR) Band-Pass filters & polarizing / Filter Available |
| Lens Options | 6.2 mm (3 position or liquid lens, 40..200 mm) / 16 mm (manual focus or liquid lens, 80 mm..1 m) |
| Decode Rate | 45/sec. |
| Acquisition | 45 fps |
| Image Resolution | 1280 x 960 Global shutter |
| Algorithms | 1DMax / 2DMax / PowerGrid |
| Codes | 1D and Stacked Codes / Omnidirectional 1D Codes / 2D Codes / DPM codes |
| Temperature: Operating | 0°C to 40°C |
| Part Depth (mm) | Straight: 42.5 mm x 22 mm x 76.1 mm / Right-Angle: 42.5 mm x 48.5 mm x 49.6 mm |
| Part Width (mm) | Straight: 42.5 mm x 22 mm x 76.1 mm / Right-Angle: 42.5 mm x 48.5 mm x 49.6 mm |
| Part Length (mm) | Straight: 42.5 mm x 22 mm x 76.1 mm / Right-Angle: 42.5 mm x 48.5 mm x 49.6 mm |
| Weight (g) | 142g |
| Power | Two models with 24V +/- 10% / PoE (Power over Ethernet) |
