Description

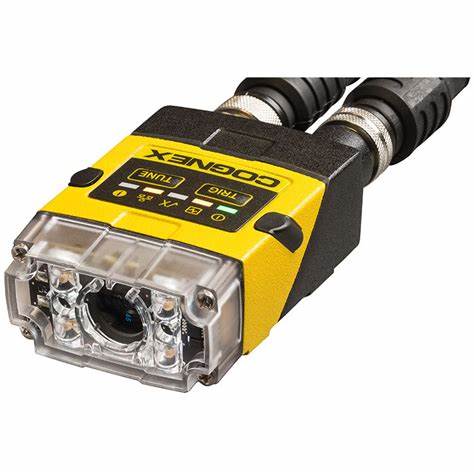

xThe DM262X is a fixed-mount barcode reader from Cognex fitted with an S-mount 6.2 mm lens and LED illumination, housed to IP65 for protection in industrial environments. It reads a broad set of 1-D and 2-D codes, including Code 128, Data Matrix, QR Code, PDF417 and MaxiCode, making it suitable for track-and-trace and identification tasks across varied code types. It is rated for operation between 0°C and 40°C, suiting installation directly on production lines or within automation panels.
Key specifications
- IP rating: IP65
- Operating temperature: 0°C to 40°C
Specifications
x| IP Rating | IP65 |
| Country of Origin | America |
| Lens Options | S-mount 6.2 mm F:5 / IR blocking filter S-mount 16 mm F:7 (with optional liquid lens) with IR blocking filter |
| Codes | 1-D barcodes: / Codabar / Code 39, Code 128 / Code 93 / Code 25 / Interleaved 2 of 5 / Pharma / GS1 DataBar / Postal / Code UPC/EAN/JAN / MSI 2-D barcodes / Data MatrixTM (IDMax and IDQuick / ECC 0, 50, 80, 100, 140, and 200) / QR Code and microQR Code / RSS/CS / PDF 417 / MicroPDF 417 / AztecCode / DotCode, /MaxiCode |
| Temperature: Operating | 0°C to 40°C |
| Weight (g) | 142g |
