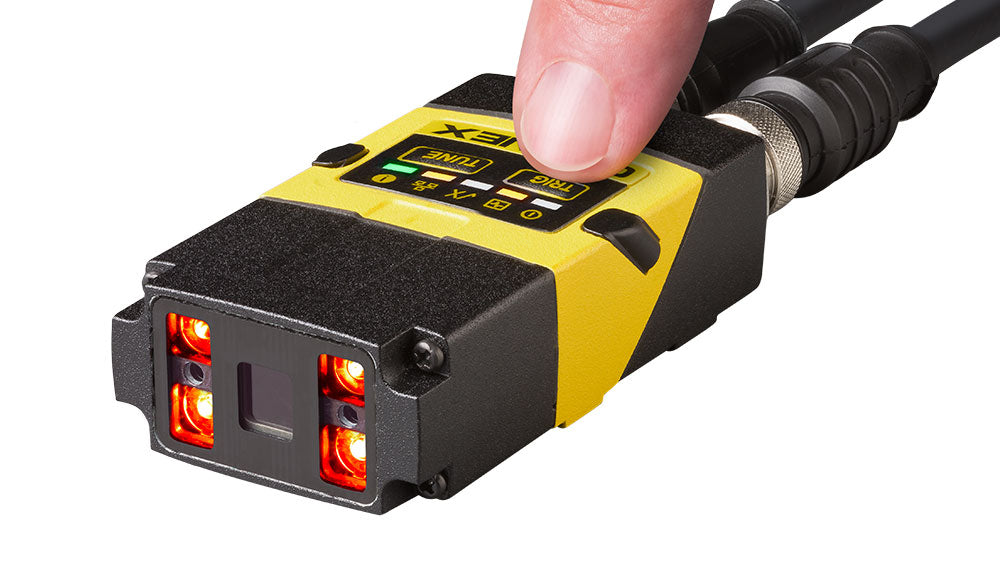

Cognex DataMan 260Q ID reader w/ LLM, fixed-mount Part number DMR-260Q-MAX

The DataMan 260Q is a fixed-mount ID reader with an IP-65 rated aluminium housing, suited to industrial environments requiring protection from dust and moisture. It reads 1D, stacked, omnidirectional 1D and 2D codes using the 1DMax/2DMax algorithms, with a global shutter sensor at 752 x 480 resolution, acquisition of 60...
Vendor: Cognex
Availability: Out Of Stock
Product type: Machine Vision & Identification
Please hurry! Only 0 left in stock
Description
Description
x

The DataMan 260Q is a fixed-mount ID reader with an IP-65 rated aluminium housing, suited to industrial environments requiring protection from dust and moisture. It reads 1D, stacked, omnidirectional 1D and 2D codes using the 1DMax/2DMax algorithms, with a global shutter sensor at 752 x 480 resolution, acquisition of 60 fps and a decode rate of 45 per second. Illumination is provided by four independently controlled LEDs (red, white, blue, IR) with band-pass and polarising filter options, and lens choices include a 6.2 mm and a 16 mm variant to suit different working distances. It connects via RS-232 or Ethernet, with power supplied either by 24V or PoE.

Key specifications

  • Material: Aluminum
Specifications
Specifications
x
IP RatingIP-65
Compliance/CertificationsAustralia C-TICK, AS/NZS CISPR 22 / EN 55022 for Class A Equipment; Japan J55022, Class A; KCC; Safety: IEC 60950-1:2005 (2nd Edition); Am 1:2009
Compliance/CertificationsAm 1:2009 / AS/NZS CISPR 22 / EN 55022 for Class A Equipment / Australia C-TICK / EN 55022 for Class A Equipment / IEC 60950-1:2005 (2nd Edition) / Japan J55022, Class A / KCC
Country of OriginAmerica
CommunicationRS-232 and Ethernet Interface
LightingModular/field configurable / lighting: Four independently controled, high-power LEDs (Red, White, Blue, IR) Band-Pass filters & polarizing / Filter Available
Lens Options6.2 mm (3 position or liquid lens, 50..250 mm) / 16 mm (manual focus or liquid lens, 80 mm .. 1 m)
Decode Rate45/sec.
Acquisition60 fps
Image Resolution752 x 480 Global shutter
Algorithms1DMax / 2DMax
Codes1D and Stacked Codes / Omnidirectional 1D Codes / 2D Codes
MaterialAluminum
Weight (g)142g
PowerTwo models with 24V +/- 10% / PoE (Power over Ethernet)
