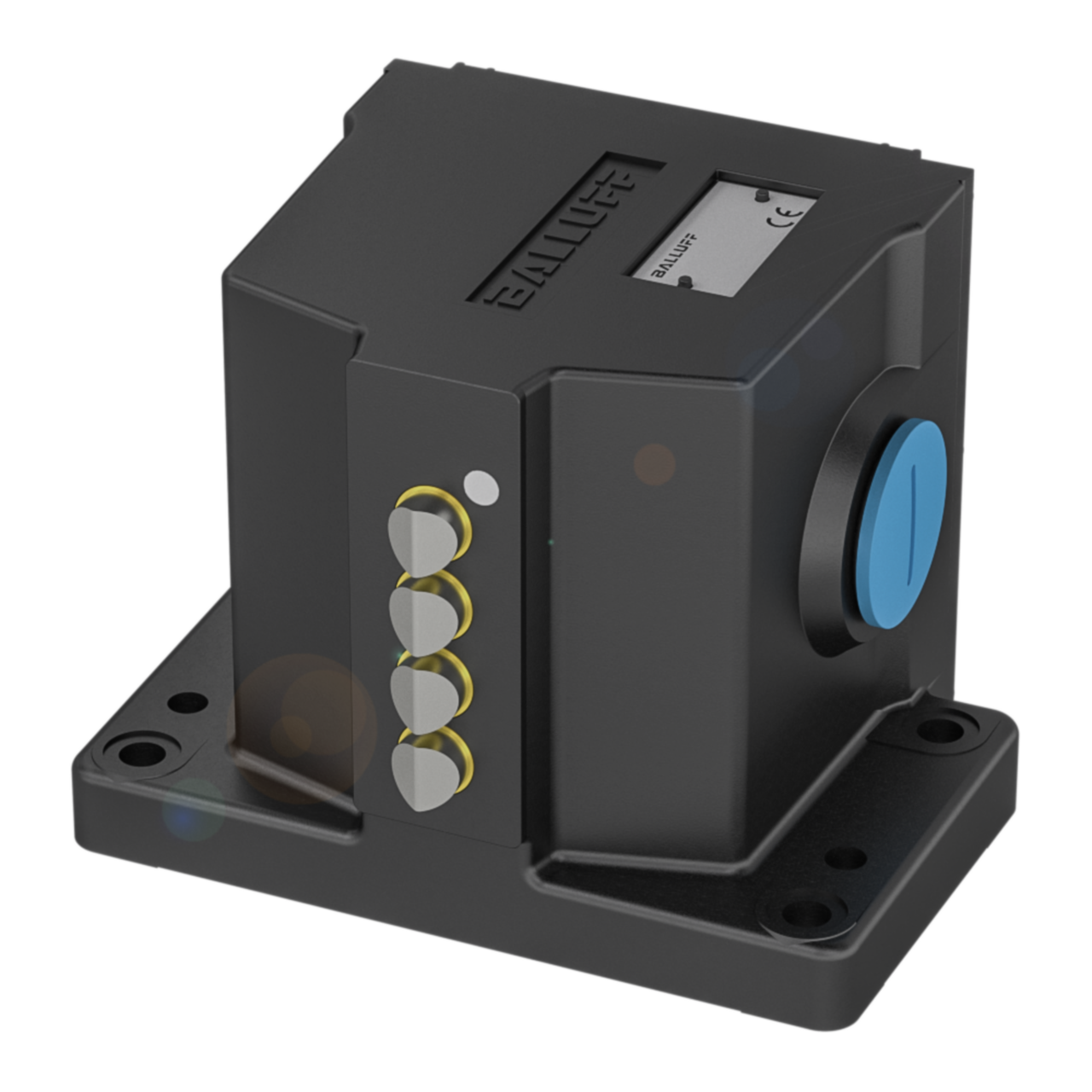

Balluff BNS 819-D02-L12-100-10 Multiple position switch Part number BNS00C3

This is a mechanically actuated limit switch with an anodized aluminium housing, intended for vertical installation on machinery and panels where multiple switch positions are required. Electrical connection is made via screw terminals, and the unit carries an IP67 rating for use in environments exposed to dust and moisture. It is rated for ambient temperatures from -5 to 85 °C, suiting installations in industrial settings subject to temperature variation.

Key specifications

• IP rating: IP67
• Connection: 1-2. Switch position: Screw terminal
• Operating temperature: -5...85 °C
• Dimensions: 120 x 70 x 83 mm
• Material: Aluminium, Anodized
• Mounting: Vertical
