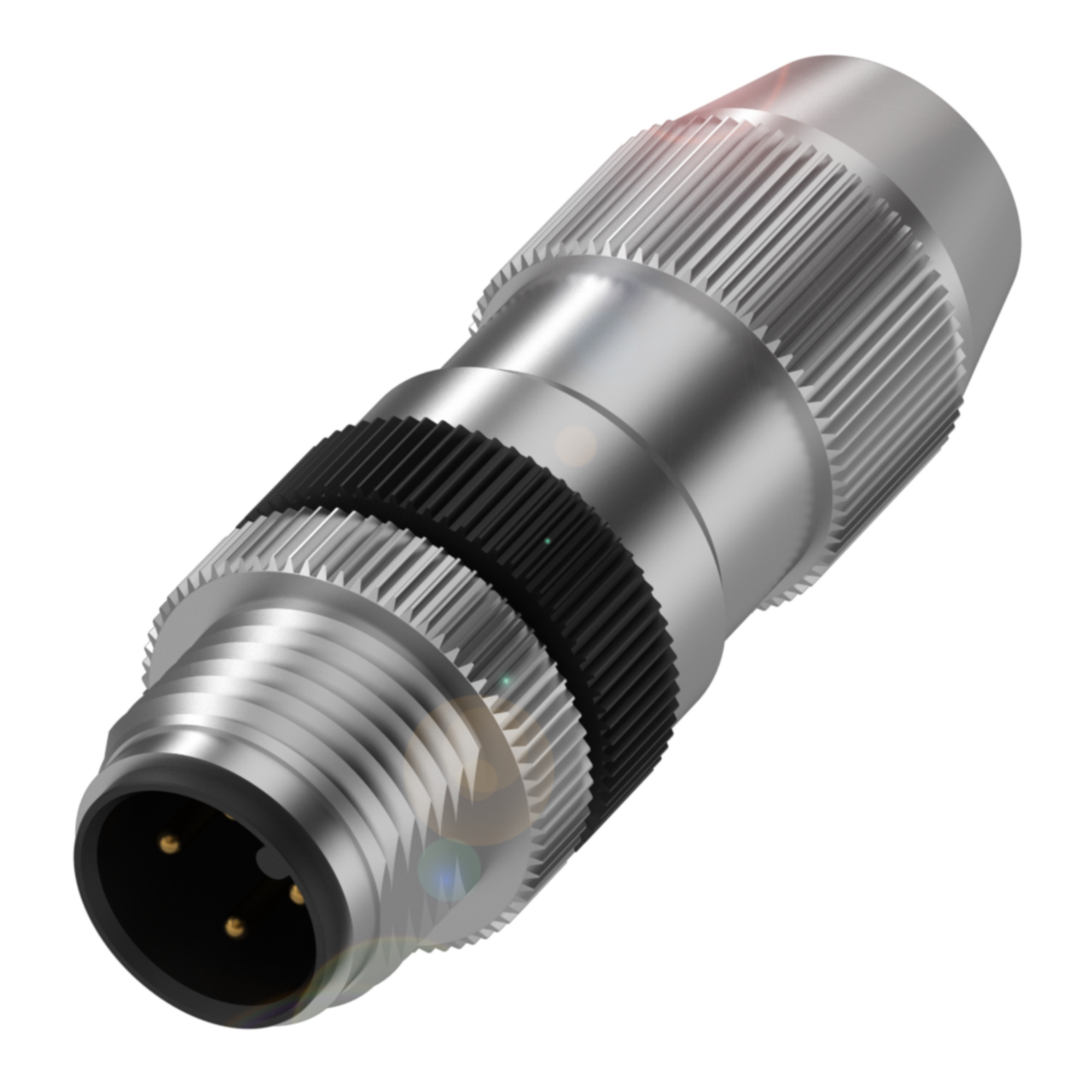

Balluff BKS-S109-RT14 Field attachable, M12, male, 4-pin Part number BCC02H9

The Balluff BKS-S109-RT14 is a field-attachable M12 male connector with a 4-pin straight configuration, used for terminating cordsets on site rather than relying on pre-moulded assemblies. It accepts cable diameters between 2.9mm and 5.1mm with conductor cross sections from 0.14 to 0.34 mm², and is rated IP67 for use in environments requiring protection against dust and temporary immersion. The housing and contact carrier are made from PA, with brass contacts and a brass, nickel-plated jacket nut, supporting an operating voltage of 32 VDC/VAC and a rated current of 4A. It is suited to automation and machine-building applications where field termination of sensor or actuator cabling is required, across an operating temperature range of -40°C to 85°C.

Key specifications

• IP rating: IP67
• Operating voltage: 32 VDC / 32 VAC
• Connection: M12 / Male Straight / 4 Pin
