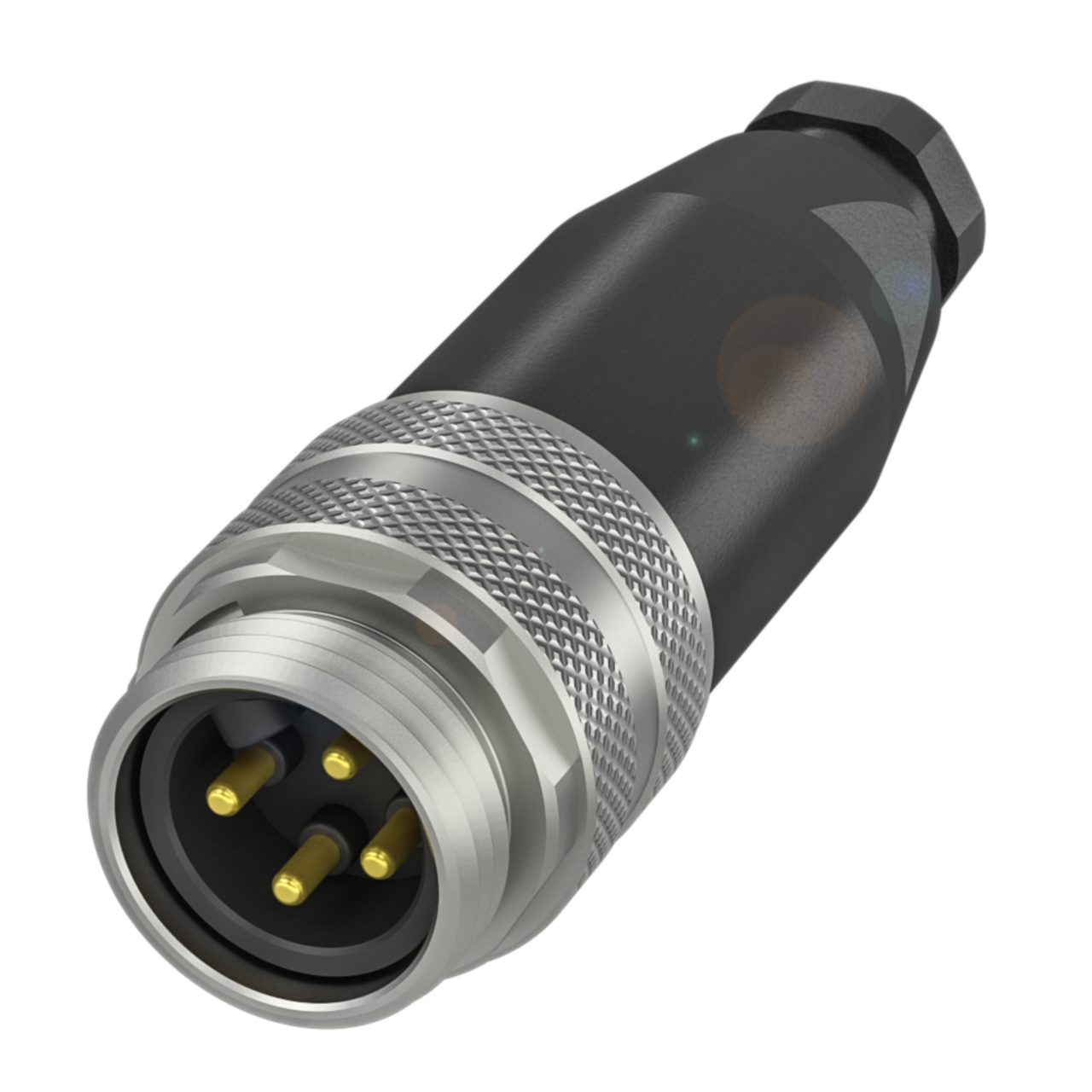

Balluff BCC A334-0000-20-000-51X4A5-000 Field attachable, male Part number BCC0709

This Balluff BCC A334-0000-20-000-51X4A5-000 is a field attachable male cordset connector with a 7/8" 16 UN, 4-pin straight female connection, terminated using screw terminals. The housing and grip are PBT with a die-cast zinc jacket and cover nut, and it accepts cable diameters of 6mm to 8mm, tightened to 1.5 Nm. Rated IP67 with an operating voltage of 600 VDC/VAC and a current rating of 9 A, it is suited to field wiring of automation and sensing components in industrial panels and machinery where on-site cable assembly is required.

Key specifications

• IP rating: IP67
• Operating voltage: 600 VDC / 600 VAC
• Connection: 7/8" / 16 UN / Female / Straight / 4-pin
