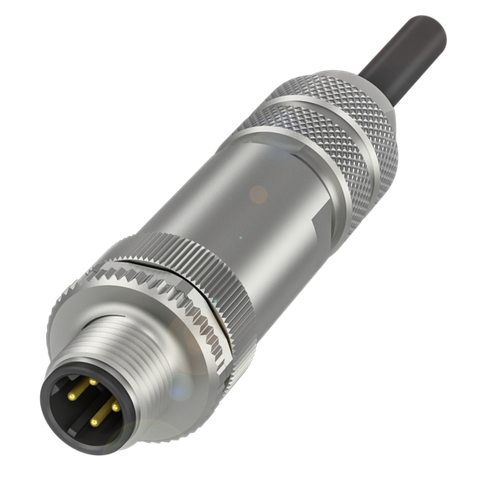

Balluff BCC M474-0000-2D-000-51X475-000 Field attachable Part number BCC03WZ

The BCC M474-0000-2D-000-51X475-000 is a field attachable cordset from Balluff, terminated with an M12, male straight, 4-pole connector using screw terminals for on-site assembly. It accepts cables with an outer diameter of 5mm to 8mm and conductor cross sections of 0.14 to 0.75 mm², with a die-cast zinc cover nut and brass contacts. Rated IP67 and for operation from -40°C to 85°C, it is suited to industrial automation wiring where connectors must be fitted directly to cables in the field, supporting up to 250 VDC/VAC and 4A.

Key specifications

• IP rating: IP67
• Operating voltage: 250 VDC / 250 VAC
• Connection: M12 / Male Straight / 4 Poles
