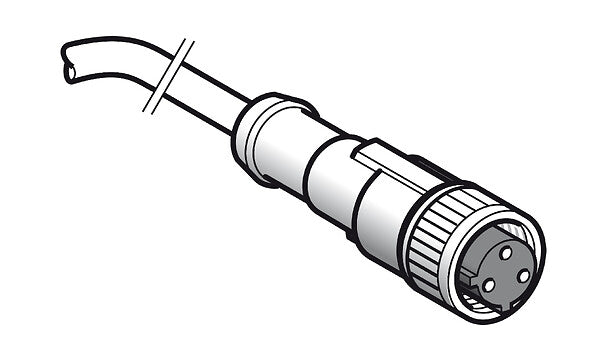

Schneider Pre wired connector, straight, female, 3-pins, 10m Part number XZCP1865L10

This pre-wired connector features a straight, female 3-pin configuration with a 10 metre cable length, allowing direct connection between sensors or actuators and control equipment without additional termination work. It is typically used in field wiring applications where a fixed cable length simplifies installation within automation panels and machines. As...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This pre-wired connector features a straight, female 3-pin configuration with a 10 metre cable length, allowing direct connection between sensors or actuators and control equipment without additional termination work. It is typically used in field wiring applications where a fixed cable length simplifies installation within automation panels and machines. As a cordset, it forms part of the connectivity layer linking field devices to control systems.

Specifications
Specifications
x
Product data sheetXZCP1865L10
Electrical connectionStraight female connector 1/2"20 UNF, 3 pins
Cable connector fixingScrew-on
Collar materialMetal
Status LEDWithout
Cable length10 m
Cable outer diameter5.2 mm
Cable composition3 x 0.34 mm²
Wire insulation materialPUR
[Ue] rated operational voltage250 V AC 300 V DC
[In] rated current4 A
Contact resistance5000 µOhm
Minimum insulating resistance1 GΩ
Net weight0.4 kg
IP degree of protectionIP67
Product certificationsCULus
Ambient air temperature foroperation -35…90 °C static -5…90 °C flexing
Nov 24, 20201
Package 1 Weight246 g
Package 2 Weight2.809 kg
Package 3 Weight56.58 kg
Documents
Documents
x
Download Datasheet
