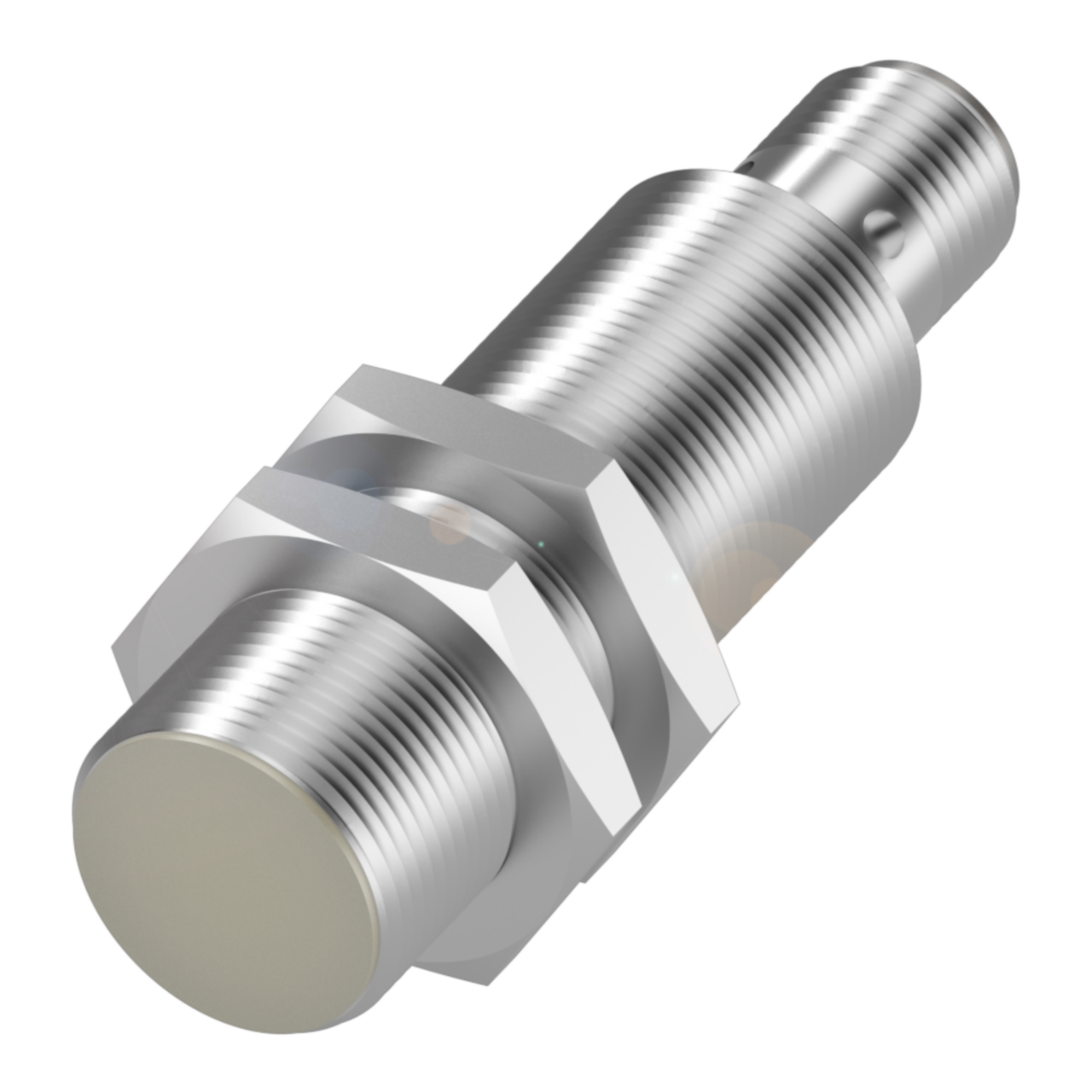

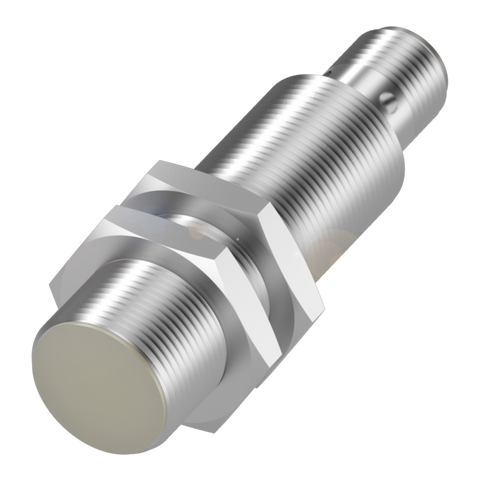

Balluff BES M18EI-PSC80B-S04G-L01 Washdown + hygienic inductive sensor Part number BES0437

The BES M18EI-PSC80B-S04G-L01 is an M18 inductive proximity sensor with a stainless steel housing and PEEK sensing face, rated to IP68/IP69K for washdown and hygienic environments. It provides a PNP normally open output with a rated operating distance of 8mm, operating from 10-30 VDC, and connects via an M12x1 4-pin A-coded male connector. Its sealed construction and switching frequency of 700 Hz suit its use for object detection on machinery subject to frequent cleaning or wet processing, such as food, beverage or pharmaceutical production lines.

Key specifications

• IP rating: IP68 / IP69K
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open (NO)
