Balluff BES M12EI-PSC40B-S04G-S Inductive sensor, PNP, NO Part number BES02NA

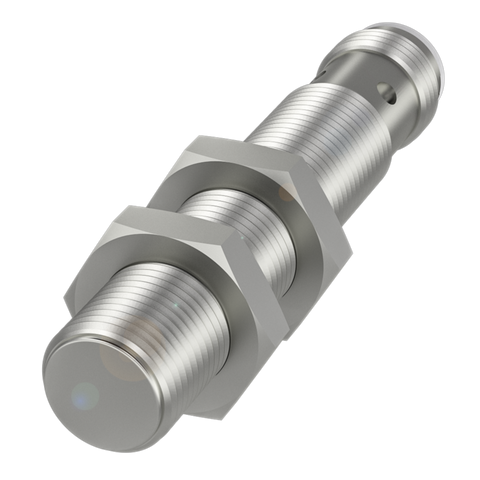

This is an inductive sensor with an M12x1 stainless steel housing, dimensioned Ø12 x 65 mm and suitable for flush mounting. It detects metal targets within a 4 mm sensing range and provides a PNP normally open output with a switching frequency of 500 Hz, connecting via an M12x1 4-pin male connector. Operating from 10...30 VDC and rated IP67 for the -25...70 °C ambient range, it is suited to industrial automation applications requiring durable, close-range object or position detection, such as on panels and machines exposed to harsh environments.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 12 x 65 mm
