Description

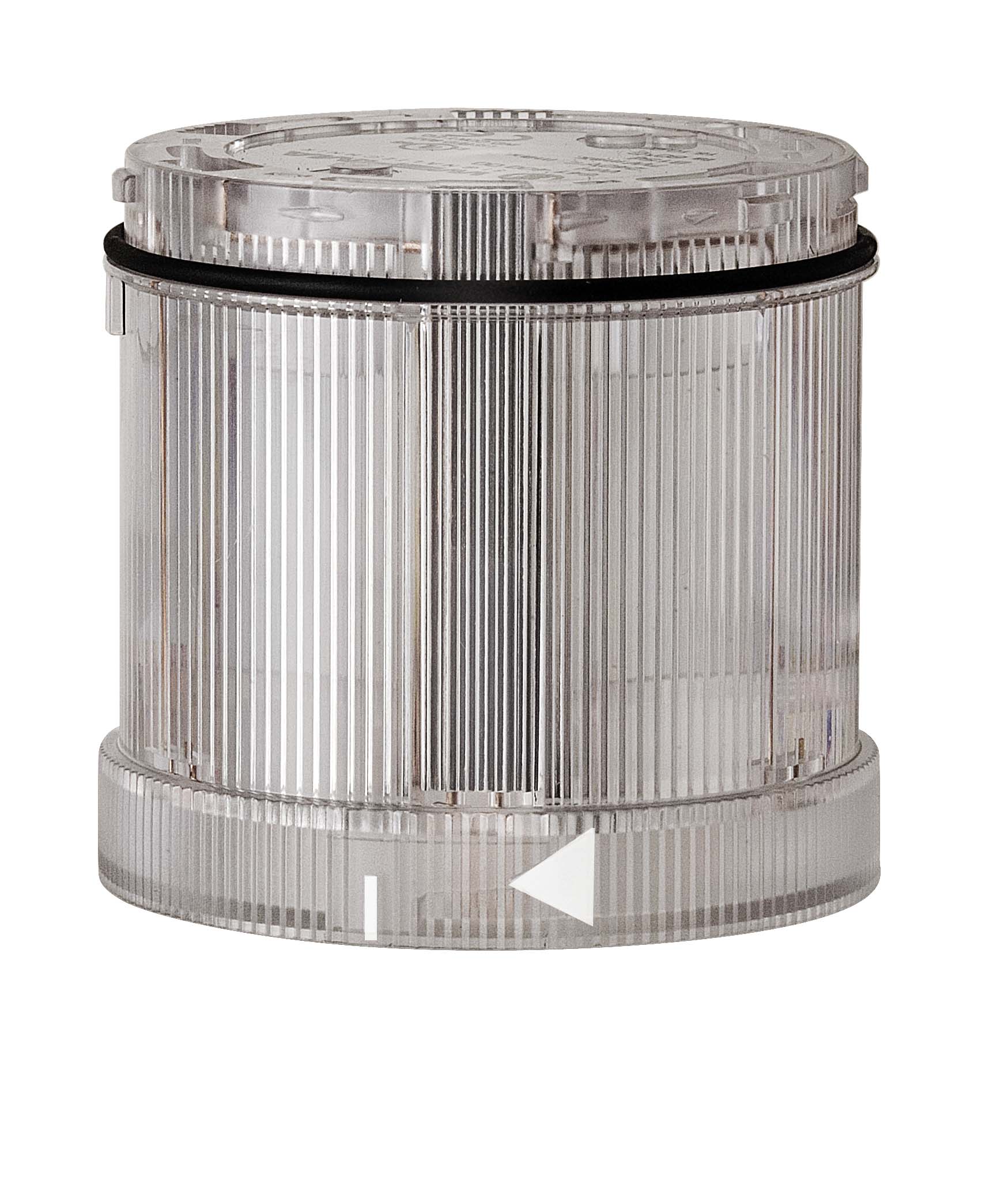

xPermanent lighting element from the KombiSIGN 71 series Integrated B15d lampholder to accommodate the light source. The continuous light indicates a specific condition to the operator Lamp not included
Specifications

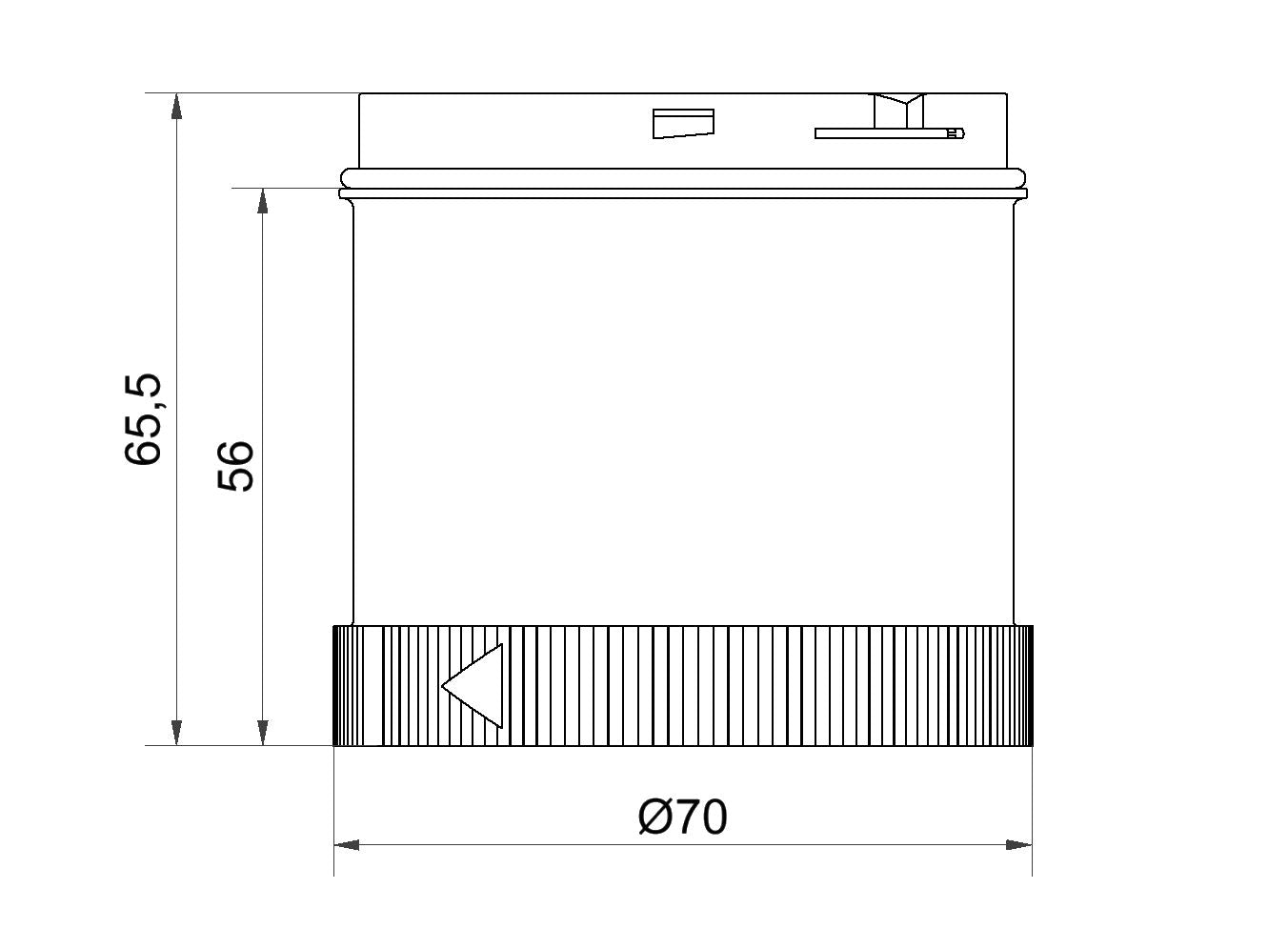

x| Height | 66 |
| Diameter | 70 |
| Materials | PC |
| Dome colour | Clear |
| Protection category | IP65 |
| Tension relief | Not present |
| Weight with packaging | 71 |
| Working temperature minimum | -20°C |
| Working temperature maximum | +50°C |
| Product weight | 56 |
| Operating voltage | 12-230V |
| Operating voltage type | AC/DC |
| Power illuminant | max. 5W |
| Protection class | Protection class 2 |
| Overvoltage category | II |
| Pollution degree | 3 |
| insulation voltage | Ui = 250V / Uimp = 2500V |
| Light source | Filament lamp |
| Light colour | White |
| Optical signal image | Permanent |
| Lamp fitting/socket | B15d |
| Service life optical | depends on bulb |
| Conforms with CE | Yes |
| Conforms with RoHS directive | Yes |
| WEEE | Yes |
| Conforms with ATEX-directive | No |
| Conforms with CCC | No |
| UL Type Rating | Type 12 |
| Conforms with FCC | No |
| Conforms with ISED | No |
| Conforms with UL | cULus |
| EAC certificate available | No |
| Conforms with UKCA (Importer) | Yes |
| Conforms with AS-I | No |
| Conforms with CMIM | No |
| Conforms with RoHS CN | No |
| ICAO Certification | No |
| Conforms with DNV | No |
| Conforms with VdS | No |
| Conforms with TÜV | No |
