Product Information

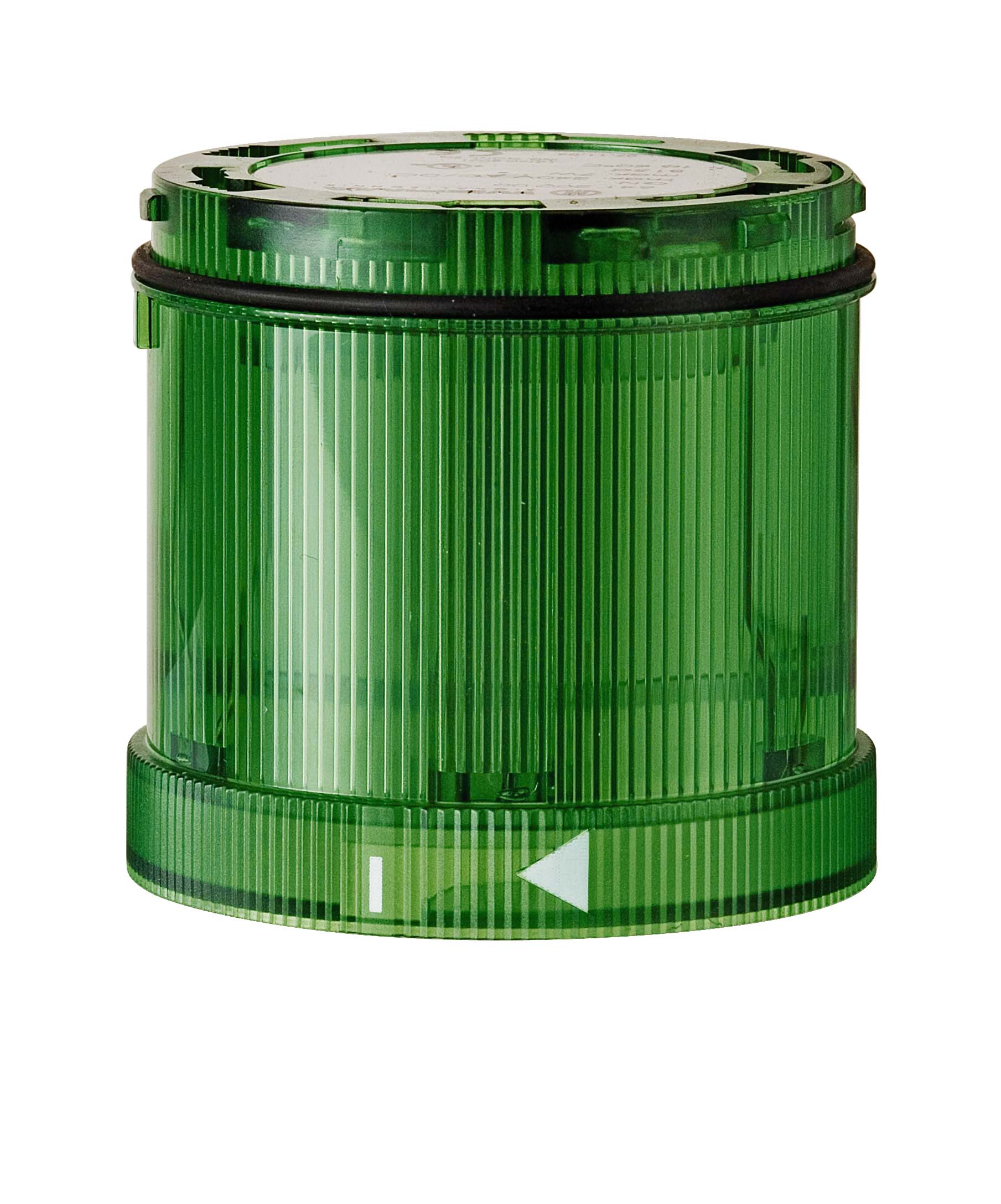

LED Blinking light element 24VAC/DC GN

Article Number

644.210.75

Product Info

LED indicator from the KombiSIGN 71 series. The flashing signal can attract greater attention.

Technical Data

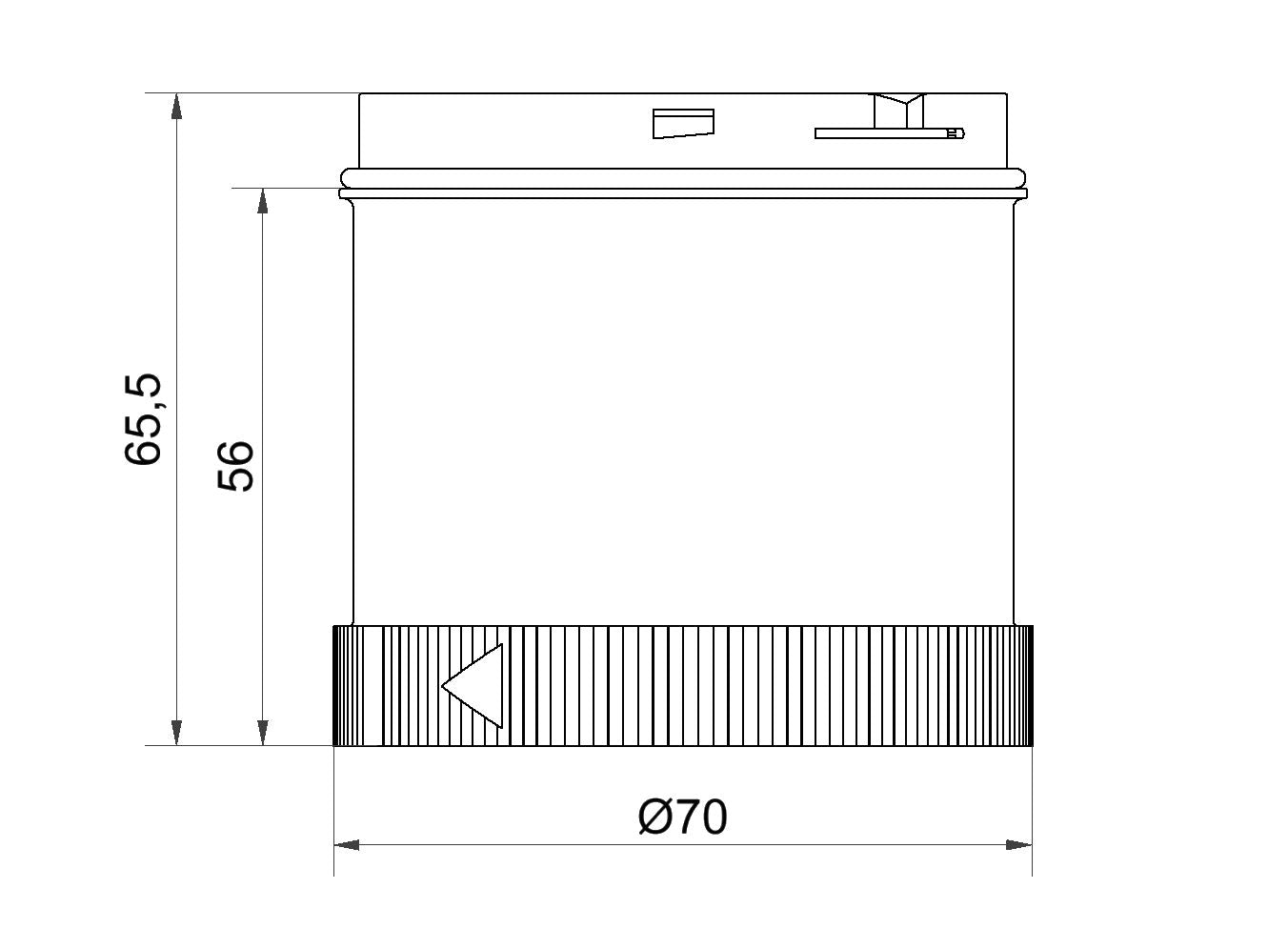

Mechanical Data

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome colour: Green
• Protection category: IP65
• Working temperature minimum: -20°C
• Working temperature maximum: +50°C
• Weight with packaging: 73.00 g
• Product weight: 59.00 g

Electrical Data

• Operating voltage: 24V
• Operating voltage type: AC/DC
• Operating voltage frequency: 50Hz
• Operating voltage tolerance: +/- 10%
• Rated operational voltage: 24 VDC
• Rated operational current: 25.00 mA
• Rated inrush current: 150 mA
• Protection class: Protection class 2
• Pollution degree: 3

Optical Data

• Light source: LED
• Optical signal image: Blink
• Blink frequency: 1 Hz
• Service life optical: 50,000 h minimum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC certificate available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet (0.21 MB)
• Operating instructions (1.16 MB)
• Dimensional drawing (0.06 MB)
• CAD Model STP (1.75 MB)
