Product Information

LED Perm. light element 230VAC BU

Article Number: 644.500.68

Product Info

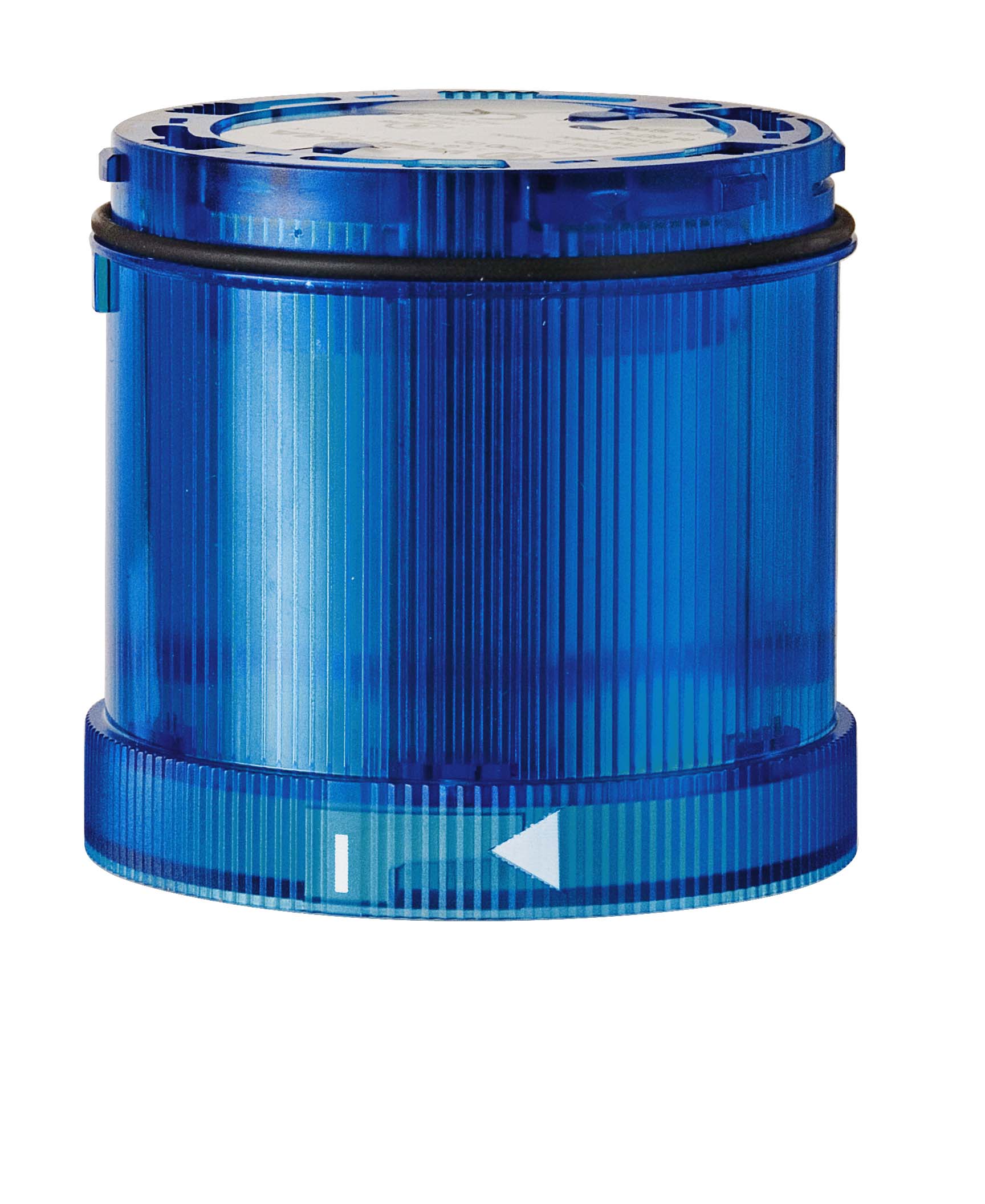

LED permanent light element from the KombiSIGN 71 series

• The use of LEDs enables a service life of up to 50,000 hours.
• Four LEDs produce a very bright point of light.
• Unambiguous signalling even in unfavourable lighting conditions.

Technical Data

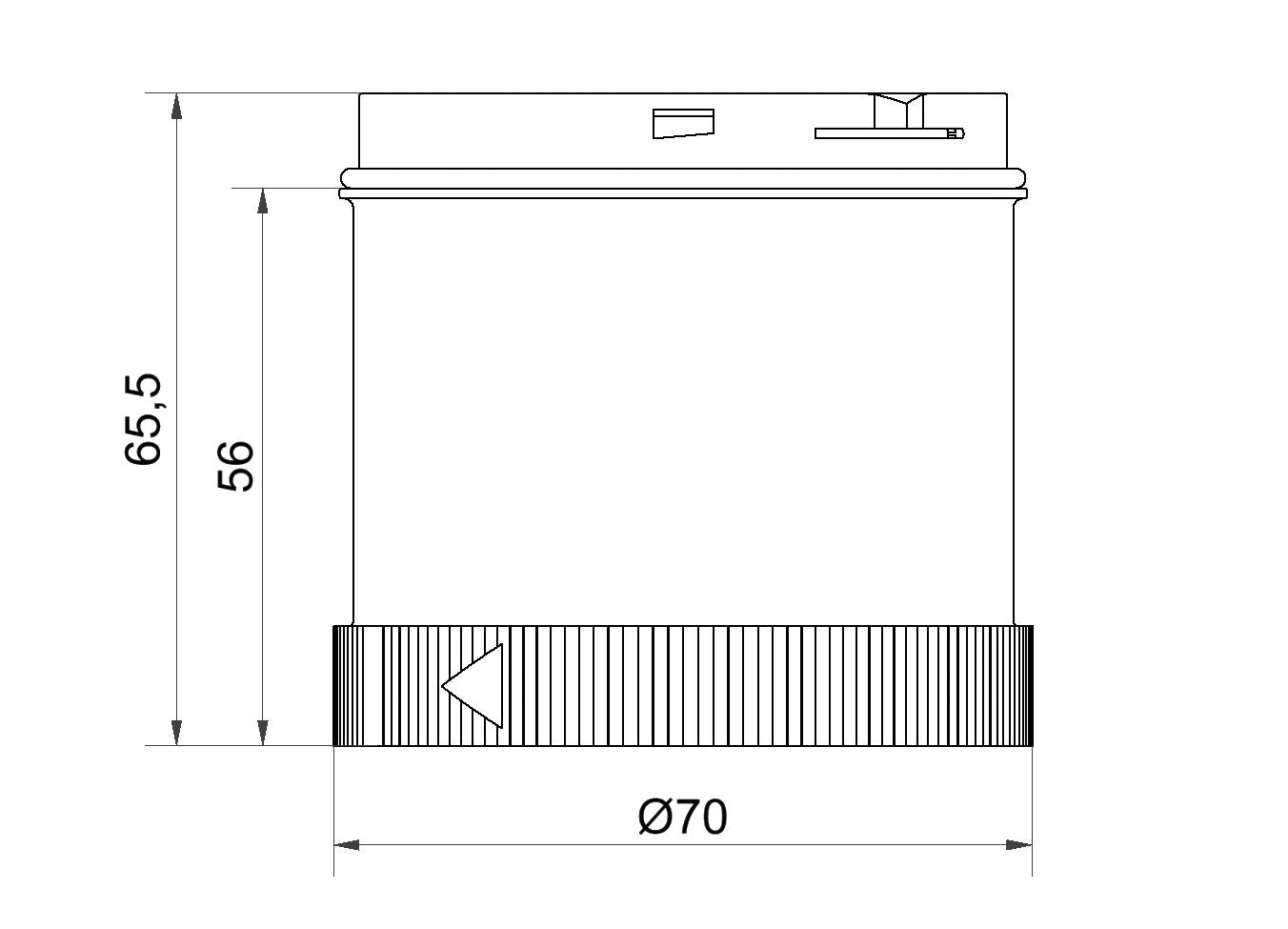

Mechanical Data

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome Colour: Blue
• Protection Category: IP65
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 74.00 g
• Product Weight: 59.00 g

Electrical Data

• Operating Voltage: 230V
• Operating Voltage Type: AC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 230 VAC
• Rated Operational Current: 35.00 mA
• Rated Inrush Current: 2.00 mA
• Protection Class: Protection class 2
• Pollution Degree: 3
• Overvoltage Category: II
• Isolation Voltage: Ui = 250V; Uimp = 2.500V

Optical Data

• Light Source: LED
• Optical Signal Image: Permanent
• Service Life Optical: 50,000 h minimum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: Yes
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet (0.23 MB)
• Operating Instructions (1.16 MB)
• Dimensional Drawing (0.06 MB)
• CAD Model STP (1.75 MB)
