Product Information

LED Perm. light element 24VAC/DC YE

Article Number

843.300.55

Voltage Options

• 24V AC/DC
• 115V AC
• 230V AC

Product Description

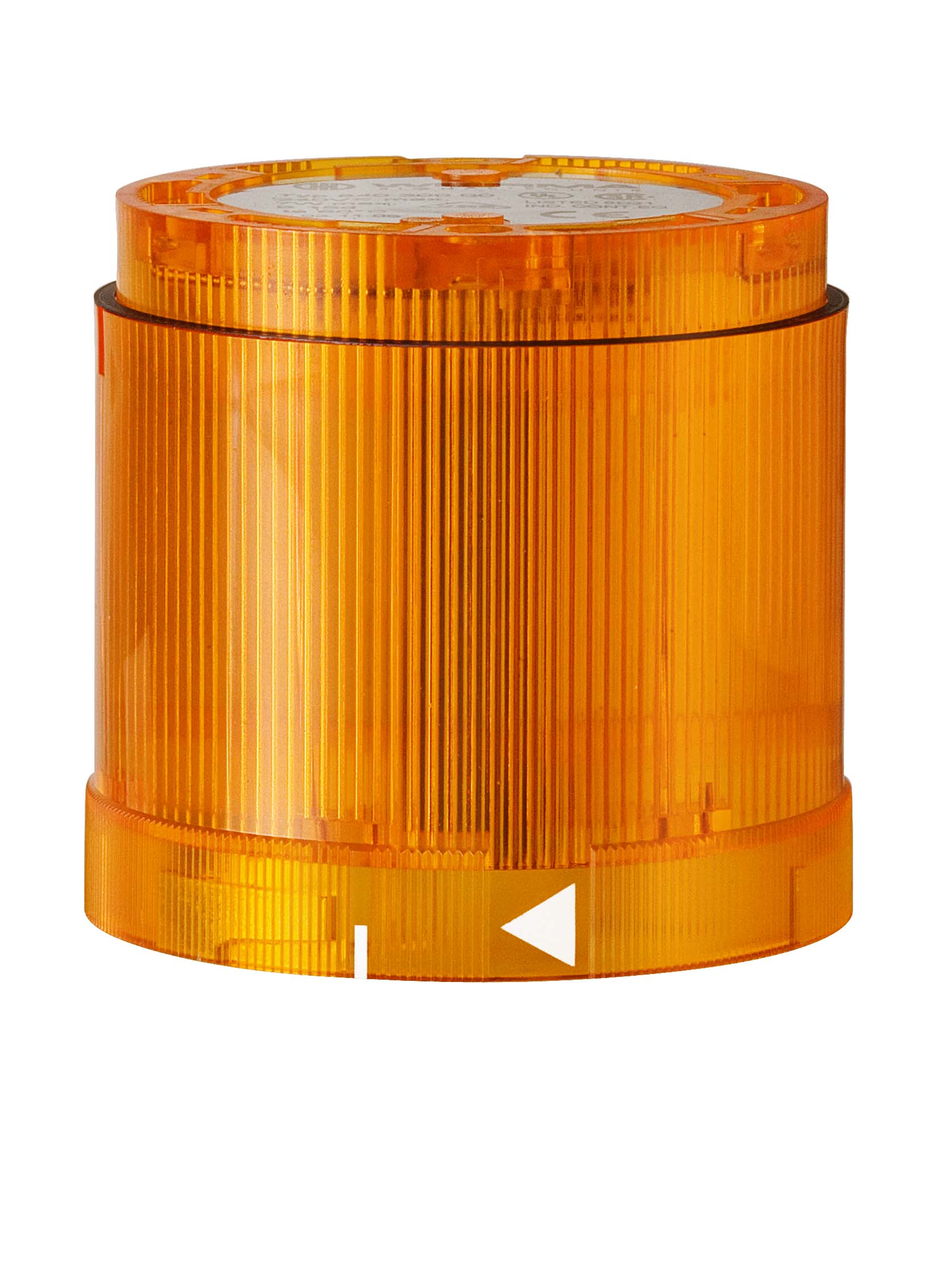

LED permanent light element from the KombiSIGN 70 series. The use of LEDs enables a service life of up to 50,000 hours. Four LEDs produce a very bright light spot, ensuring unambiguous signalling even in unfavourable lighting conditions.

Technical Data

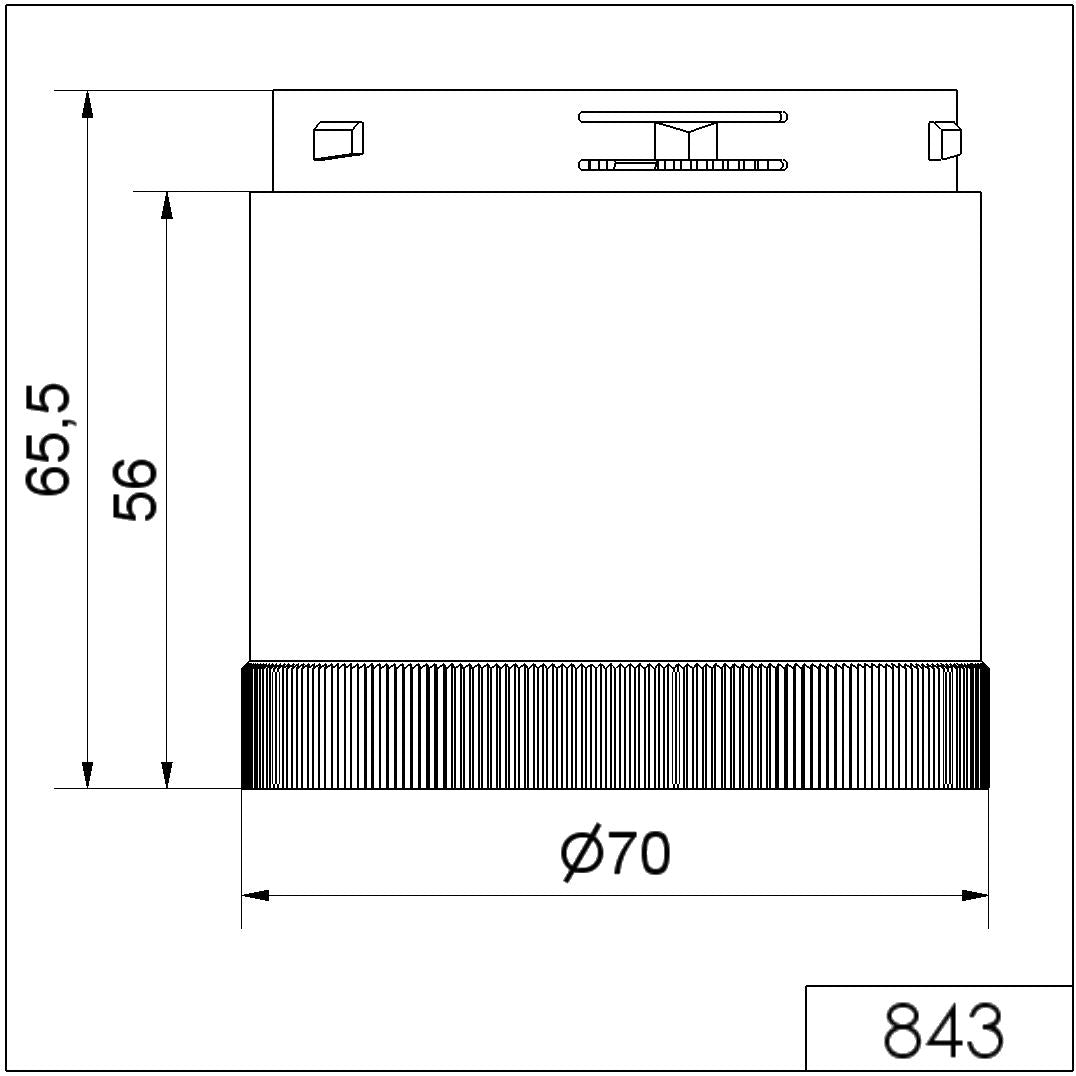

Mechanical Data

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome colour: Yellow
• Protection category: IP54
• Working temperature minimum: -20°C
• Working temperature maximum: +50°C
• Weight with packaging: 82.00 g
• Product weight: 68.00 g

Electrical Data

• Operating voltage: 24V
• Operating voltage type: AC/DC
• Operating voltage frequency: 50Hz
• Operating voltage tolerance: +/- 10%
• Rated operational voltage: 24 VDC
• Rated operational current: 30.00 mA
• Rated inrush current: 500 mA
• Protection class: Protection class 2
• Pollution degree: 3

Optical Data

• Light source: LED
• Optical signal image: Permanent
• Service life optical: 100,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC certificate available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
