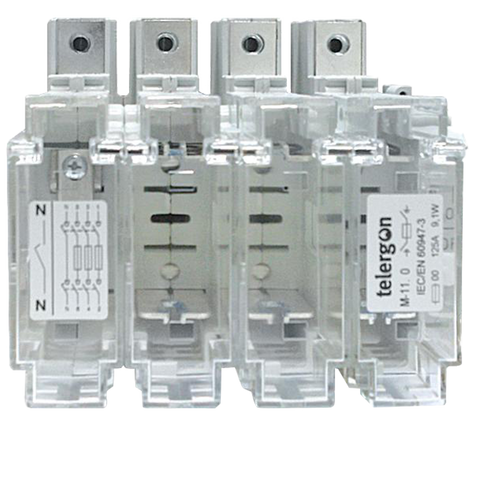

Telergon Switch fuse, size 00, 3P + N, 63A Part number M1100633NBBB0

Fusible switches are available from 32 to 800A in 2P - 3P - 3P+N (according to models) & 4P upon request. They combine in a compact unit the function of a switch-disconnector with the protection against overloads and short-circuits given by the fuses. Protection against accidental over voltages in equipments...
Vendor: Telergon
Rubicon Industrial Technology is the exclusive South African distributor for Telergon.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
Fusible switches are available from 32 to 800A in 2P - 3P - 3P+N (according to models) & 4P upon request. They combine in a compact unit the function of a switch-disconnector with the protection against overloads and short-circuits given by the fuses. Protection against accidental over voltages in equipments connected between phase and neutral (our standard 3P+N) whit advanced switched neutral pole (early make – late break).
Specifications
Specifications
x
Rated thermal current in enclosure Ithe A63, 100
Rated insulation voltage Ui V800
Rated dielectric strength 50 Hz, 1 min V5000
Rated impulse withstand voltage Uimp kV8
Power dissipation in fuse links W5.1, 6.9
Ie AC rated operational current AC21A A32, 50, 63, 100
Rated breaking capacity A260, 400, 504, 800
Rated making capacity A320, 500, 800, 1000
Maximum weight 2P kg0.7
Maximum weight 3P kg1.1
Maximum weight 3P+N kg1.5
Overall width (top view) mm121
Top view circle diameter mm40
Top view circle radius mm28
Top view circle edge-to-edge mm55.5
Top view circle center-to-center mm634
Frontal external handle total width mm95
Frontal external handle left side mm78.5
Frontal external handle right side mm49
Frontal external handle handle grip width mm26.5
Frontal external handle handle grip height mm22.5
Handle detail total width mm45
Handle detail handle grip width mm27
Handle detail handle grip height mm7
Handle detail mounting plate width mmmin 140 / max 270
