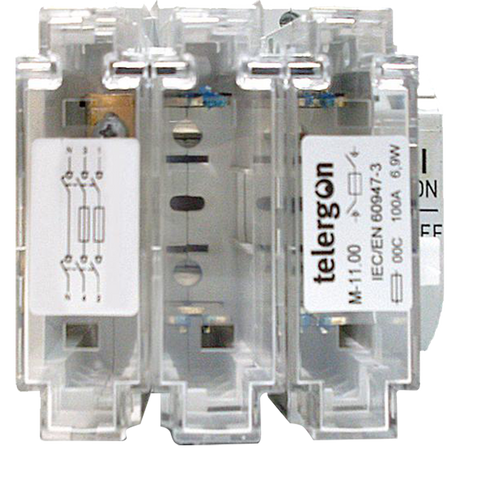

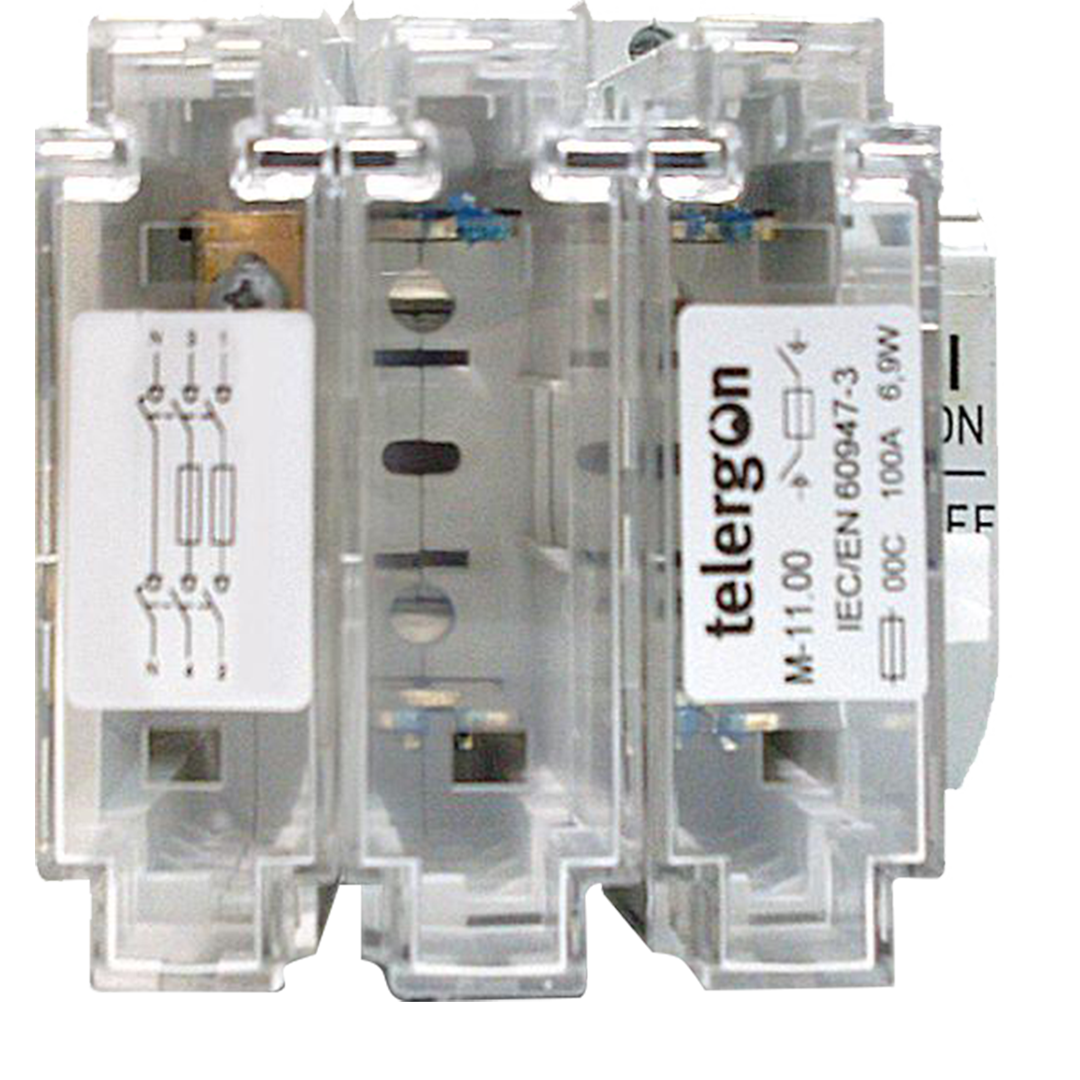

Telergon Switch fuse, size 00, 3P + N, 32A Part number M1100323NBBA0

Fusible switches are available from 32 to 800A in 2P - 3P - 3P+N (according to models) & 4P upon request. They combine in a compact unit the function of a switch-disconnector with the protection against overloads and short-circuits given by the fuses. Protection against accidental over voltages in equipments...
Vendor: Telergon
Rubicon Industrial Technology is the exclusive South African distributor for Telergon.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
Fusible switches are available from 32 to 800A in 2P - 3P - 3P+N (according to models) & 4P upon request. They combine in a compact unit the function of a switch-disconnector with the protection against overloads and short-circuits given by the fuses. Protection against accidental over voltages in equipments connected between phase and neutral (our standard 3P+N) whit advanced switched neutral pole (early make – late break).
Specifications
Specifications
x
Rated thermal current in ambient at 40 ºC32 A, 50 A, 63 A, 100 A
Rated thermal current in enclosure63 A, 100 A
Rated insulation voltage800 V
Rated dielectric strength5000 V
Rated impulse withstand voltage8 kV
Power dissipation in fuse links2.8 W (50A), 6.6 W (100A), etc.
Ie AC rated operational current at 400 V AC21A32 A, 50 A, 63 A, 100 A
Rated frequency50 / 60 Hz
Rated breaking capacity260 A, 400 A, 504 A, 800 A
Rated making capacity320 A, 500 A, 800 A, 1000 A
Short - time withstand current100 kA rms
Maximum cut - off current13 kA
Minimum number of mechanical operations10000 cycles
Maximum weight 2P0.7 kg
Maximum weight 3P1.1 kg
Maximum weight 3P+N1.5 kg
Overall width (top view)121 mm
Top view – circle diameter40 mm
Frontal external handle – total width95 mm
Handle detail – mounting plate widthmin 140 / max 270 mm
Fuse type NFC 14x51Ø14 mm x 51 mm
Fuse type NH 00C10 mm x 24 mm x 42 mm, 15 mm x 54 mm x 80 mm
Fuse type BS A1Ø14.5 mm x 44.5 mm x 4.2 mm
Fuse type BS A2Ø24 mm x 73 mm x 5.5 mm
Fuse type BS A3Ø24 mm x 73 mm x 5.5 mm
