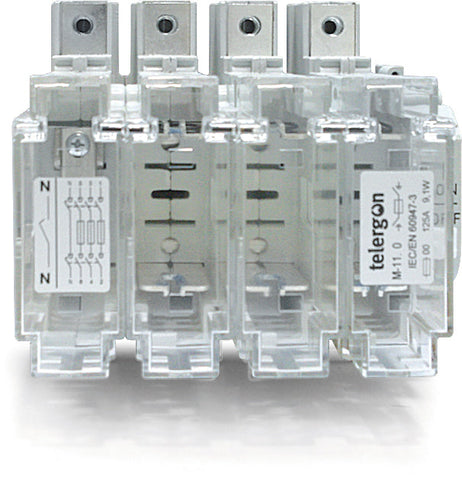

Telergon Switch fuse, size 0, 3P + N, 100A Part number M1101003NBB00

Fusible switches are available from 32 to 800A in 2P - 3P - 3P+N (according to models) & 4P upon request. They combine in a compact unit the function of a switch-disconnector with the protection against overloads and short-circuits given by the fuses. Protection against accidental over voltages in equipments...
Vendor: Telergon
Rubicon Industrial Technology is the exclusive South African distributor for Telergon.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
Fusible switches are available from 32 to 800A in 2P - 3P - 3P+N (according to models) & 4P upon request. They combine in a compact unit the function of a switch-disconnector with the protection against overloads and short-circuits given by the fuses. Protection against accidental over voltages in equipments connected between phase and neutral (our standard 3P+N) whit advanced switched neutral pole (early make – late break).
Specifications
Specifications
x
Rated thermal current at 40 ºC100 A, 125 A, 160 A
Rated insulation voltage (Ui)800 V
Rated dielectric strength (50 Hz, 1 min)6000 V
Rated impulse withstand voltage (Uimp)8 kV
Rated operational Ie (400 V, AC21A)100 A, 125 A, 160 A
Rated operational Ie (400 V, AC22A)100 A, 125 A, 160 A
Rated operational Ie (500 V, AC21A)100 A, 125 A, 160 A
Rated operational Ie (500 V, AC22A)100 A, 125 A, 160 A
Rated making capacity (400 V; cos φ = 0.45)1000 A, 1250 A, 1600 A
Short - time withstand current100 kA rms (for all ratings)
Maximum cut - off current17 kA (peak) for all ratings
Maximum weight 2P1.2 kg
Maximum weight 3P1.7 kg
Maximum weight 3P+N2.2 kg
Protection classIP65
Mechanical operations10000 cycles
Frontal external handle codeDS-SA02
Emergency frontal external handle codeDS-SR02
Documents
Documents
x
Download Datasheet
