Stego thermostat, 20°C to +80°C, N/C, 10 A, 250 VAC, DIN mnt - Rubicon Partner Portal
Stego thermostat, 20°C to +80°C, N/C, 10 A, 250 VAC, DIN mnt - Rubicon Partner Portal

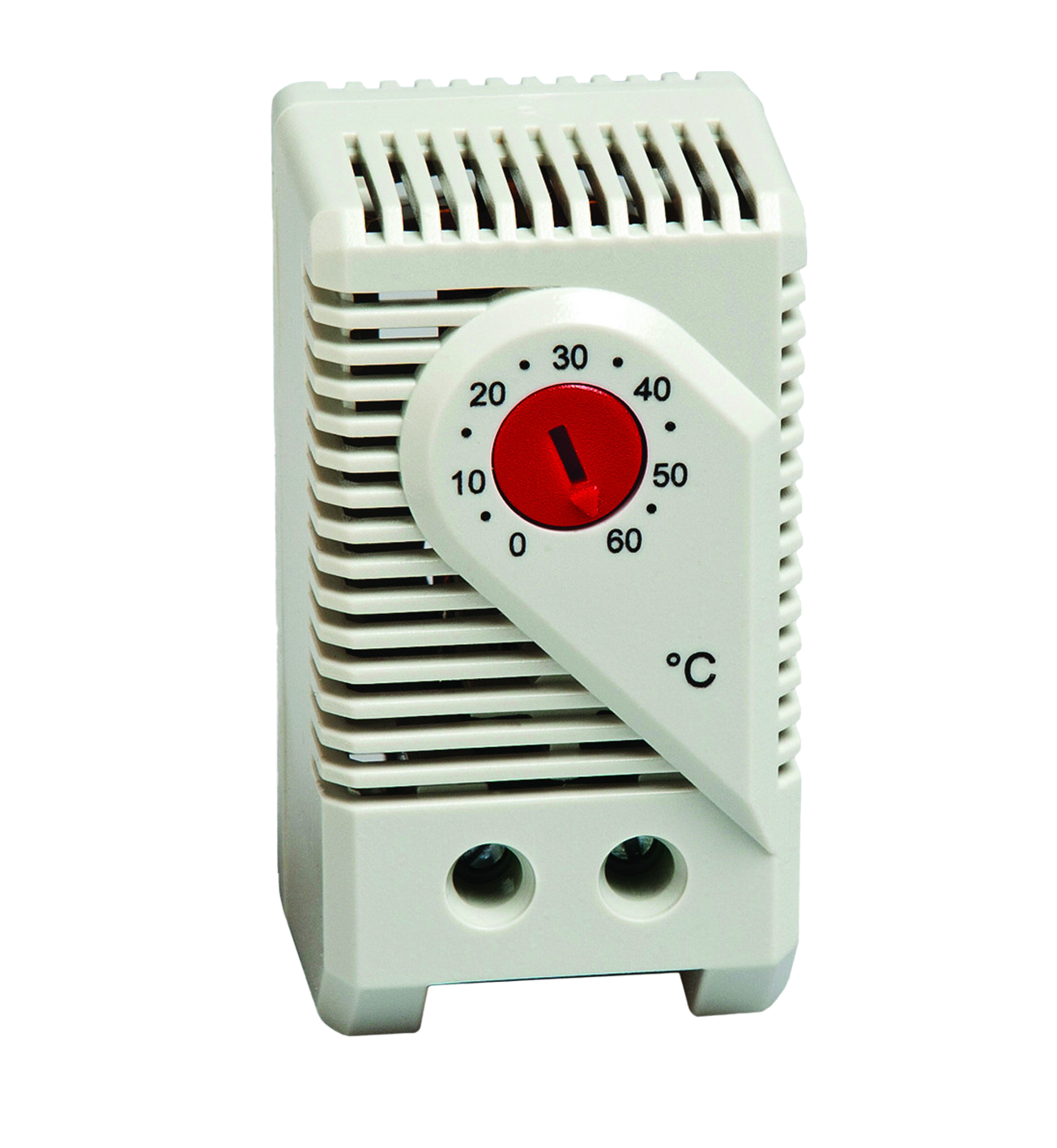

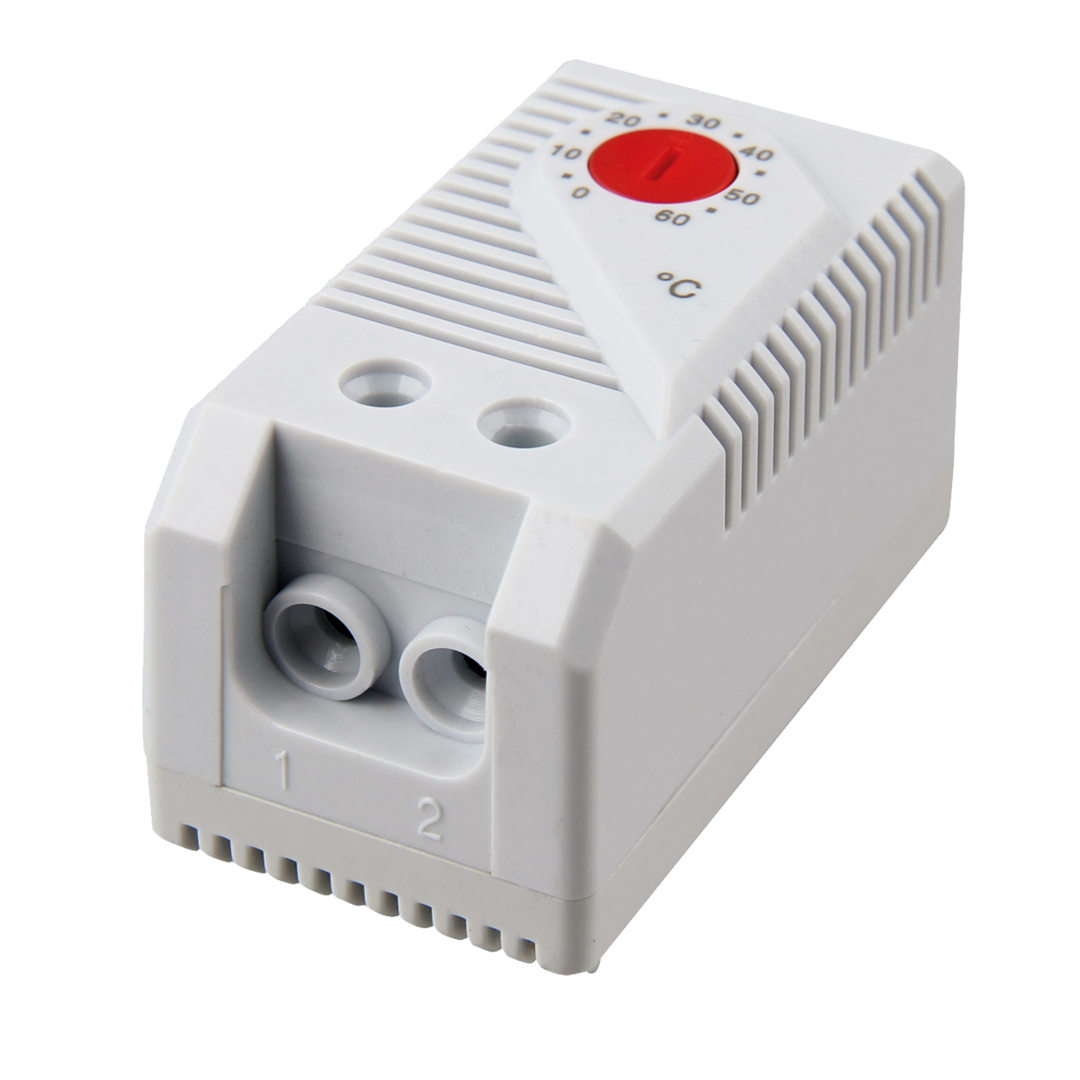

Stego Thermostat, 2-state regulator, NC, 20 - 80°C, 250VAC, 3A

The mechanical thermostats KTO 011 (contact breaker) and KTS 011 (contact maker) are two state regulators used to control heaters, coolers, filter fans or signal devices. KTO 011 Thermostat (NC); contact breaker for regulating heaters. The contact opens when temperature is rising.\n\nLarge setting range\nSmall size\nSimple to mount\nHigh switching performance\n
Vendor: Stego
SKU: 01159.0-00
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x

The mechanical thermostats KTO 011 (contact breaker) and KTS 011 (contact maker) are two state regulators used to control heaters, coolers, filter fans or signal devices. KTO 011 Thermostat (NC); contact breaker for regulating heaters. The contact opens when temperature is rising.

\n
    \n
  • Large setting range
    • \n
  • Small size
    • \n
  • Simple to mount
    • \n
  • High switching performance
    • \n
Specifications
Specifications
x
IP Rating / DetailedIP20
IP RatingIP20
Compliance/CertificationsCSA / UL / VDE
Temperature: Operating–45 °C to 70 °C
Part Depth (mm)43 mm
Part Width (mm)33 mm
Part Height (mm)60 mm
Weight (g)40 g
Material: Product HousingPlastic
Connection Type2-pole terminal for AWG 14 max. (2.5 mm²)
Operating Voltage250 VAC max
Mounting TypeClip for 35 mm DIN rail (EN 60 715)
Operating Period100,000 cycles
Documents
Documents
x
Download Datasheet
