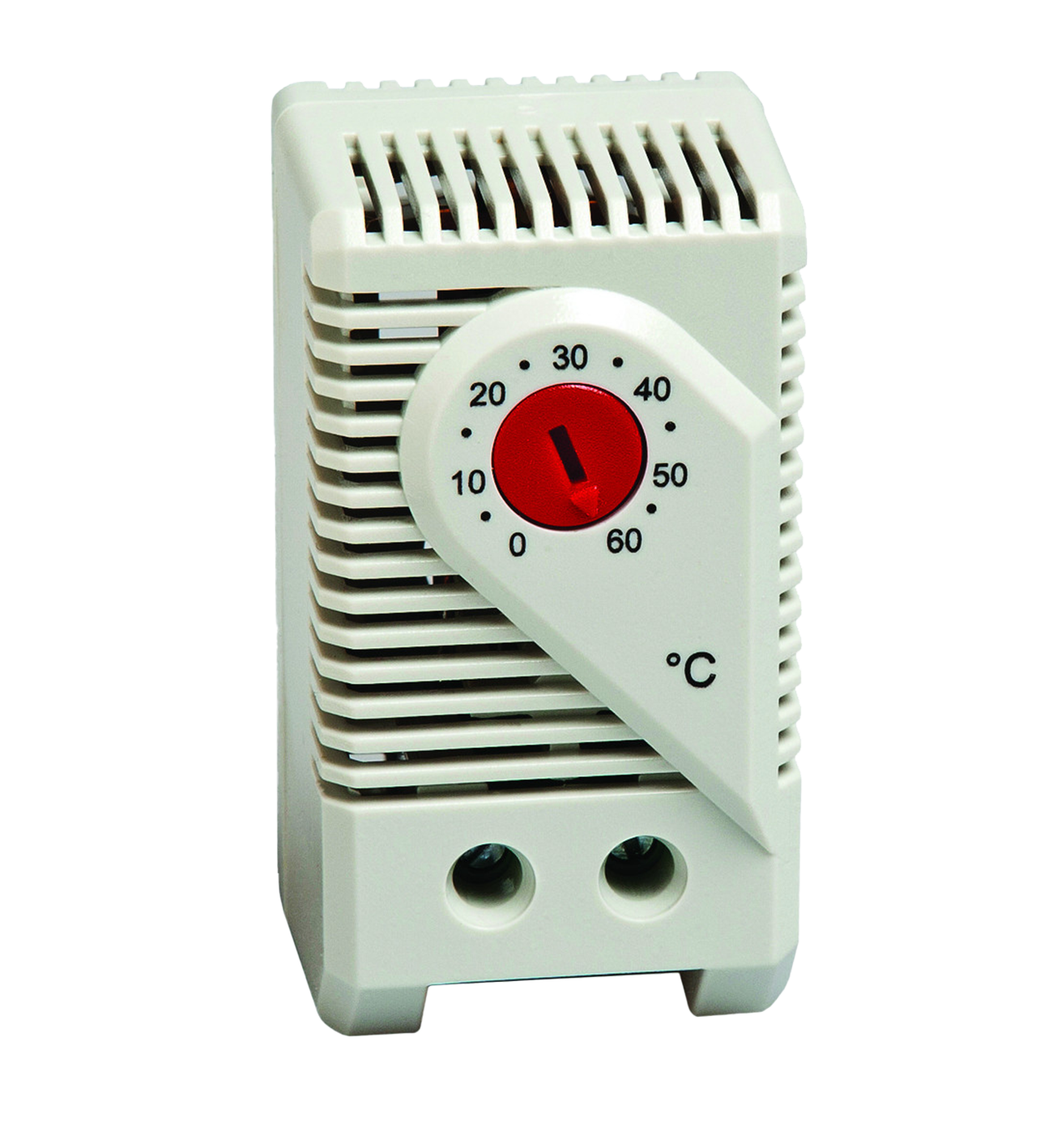

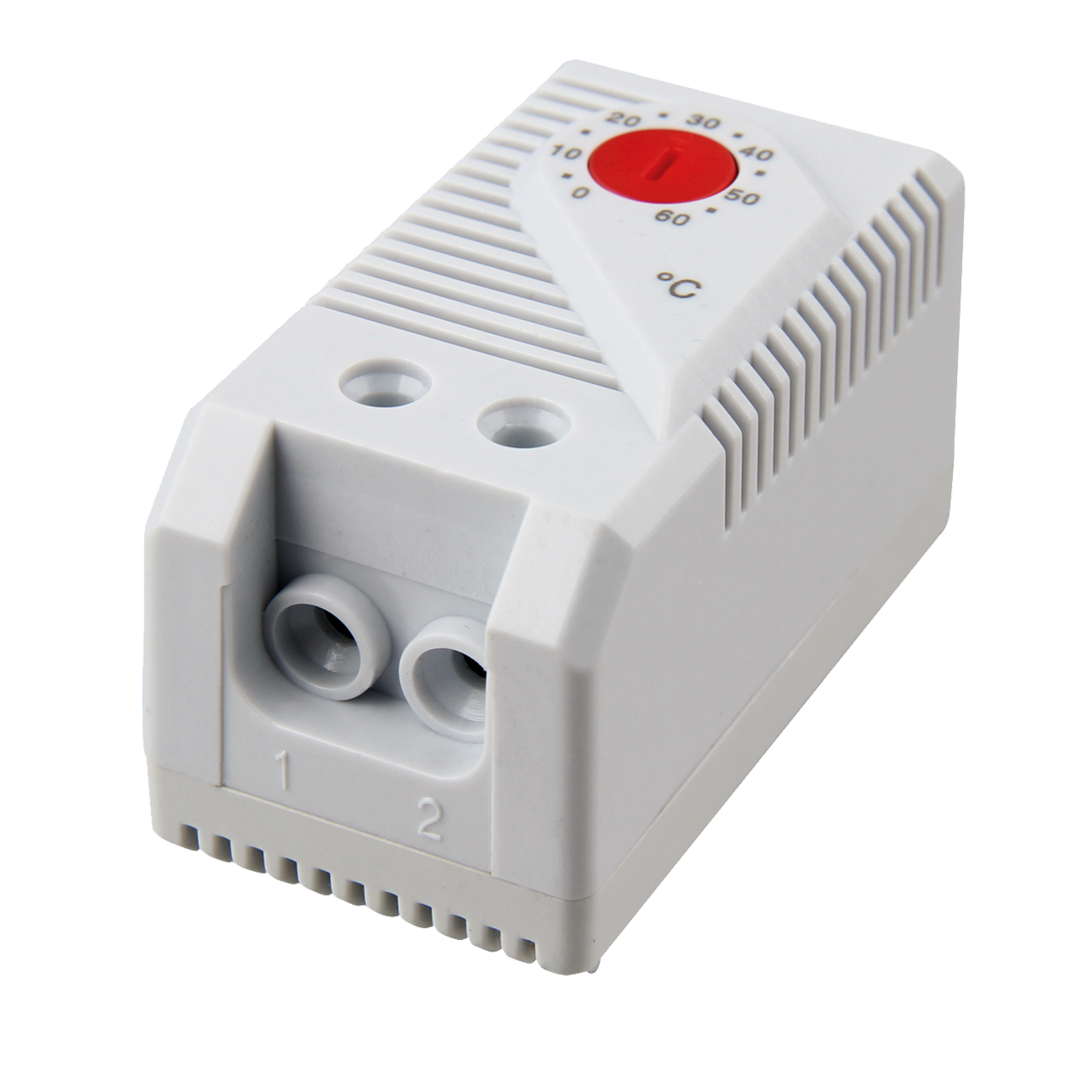

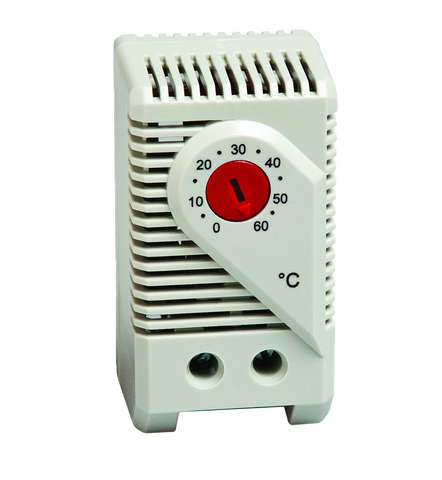

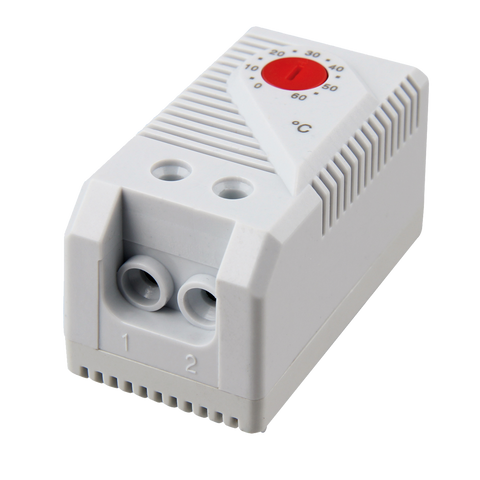

Stego Thermostat, 2-state regulator, NC, 0 - 60°C, 250VAC, 10A

The mechanical thermostats KTO 011 (contact breaker) and KTS 011 (contact maker) are two state regulators used to control heaters, coolers, filter fans or signal devices. KTO 011 Thermostat (NC); contact breaker for regulating heaters. The contact opens when temperature is rising. \n\nLarge setting range\nSmall size\nSimple to mount\nHigh switching performance\n
Vendor: Stego
SKU: 01140.9-00
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x

The mechanical thermostats KTO 011 (contact breaker) and KTS 011 (contact maker) are two state regulators used to control heaters, coolers, filter fans or signal devices. KTO 011 Thermostat (NC); contact breaker for regulating heaters. The contact opens when temperature is rising.

\n
    \n
  • Large setting range
    • \n
  • Small size
    • \n
  • Simple to mount
    • \n
  • High switching performance
    • \n
Specifications
Specifications
x
IP Rating / DetailedIP20
IP RatingIP20
Compliance/CertificationsCSA / UL
Temperature: Operating–45 °C to 70 °C
Part Depth (mm)43 mm
Part Width (mm)33 mm
Part Height (mm)60 mm
Weight (g)40 g
Material: Product HousingPlastic
Connection Type2-pole terminal for AWG 14 max. (2.5 mm²)
Operating Voltage250 VAC max
Mounting TypeClip for 35 mm DIN rail (EN 60 715)
Operating Period100,000 cycles
ColourLight Grey
Documents
Documents
x
Download Datasheet
