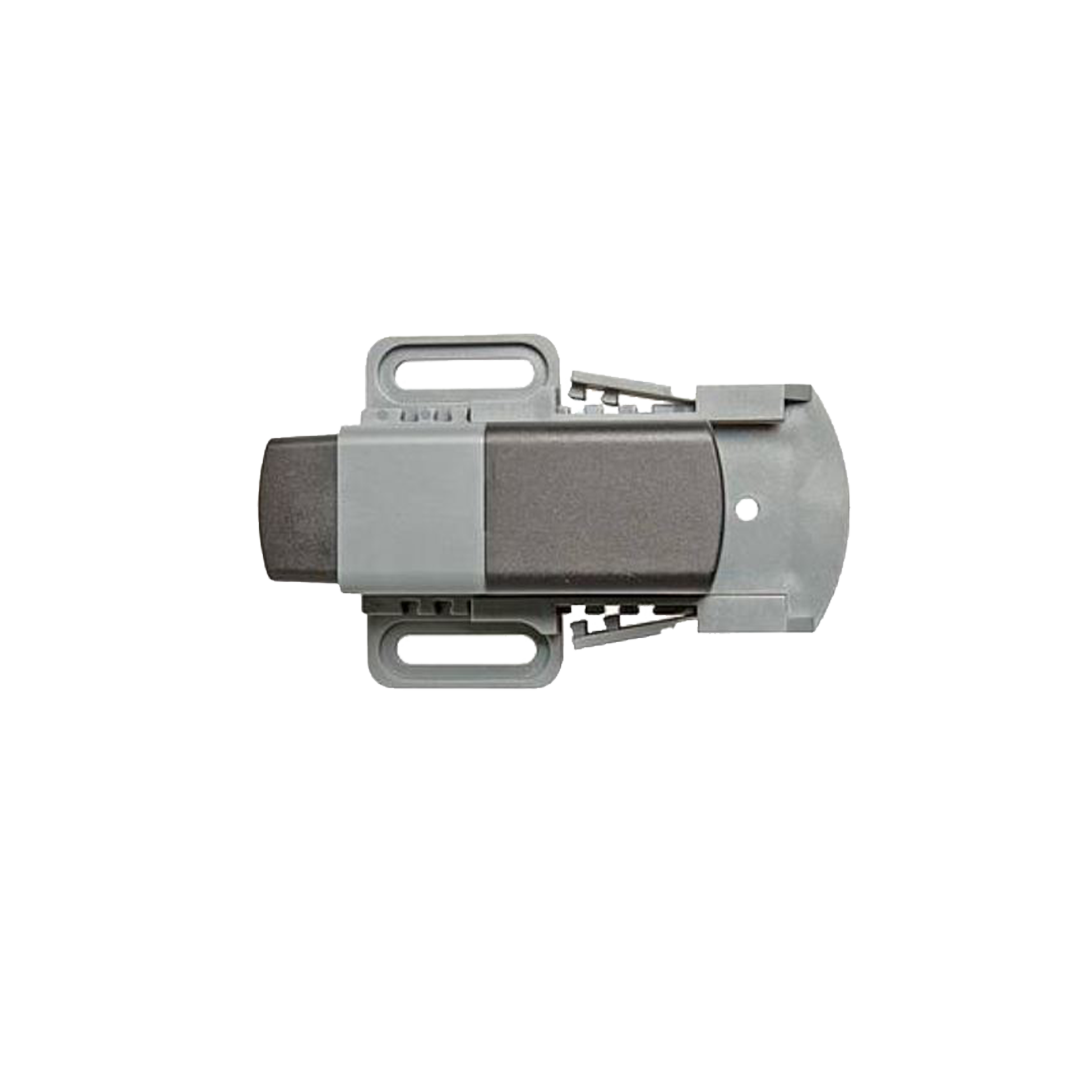

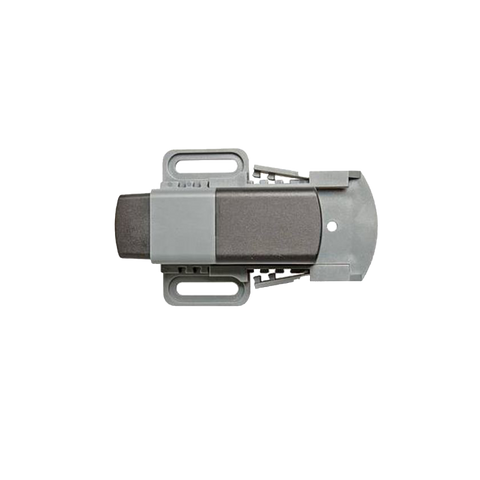

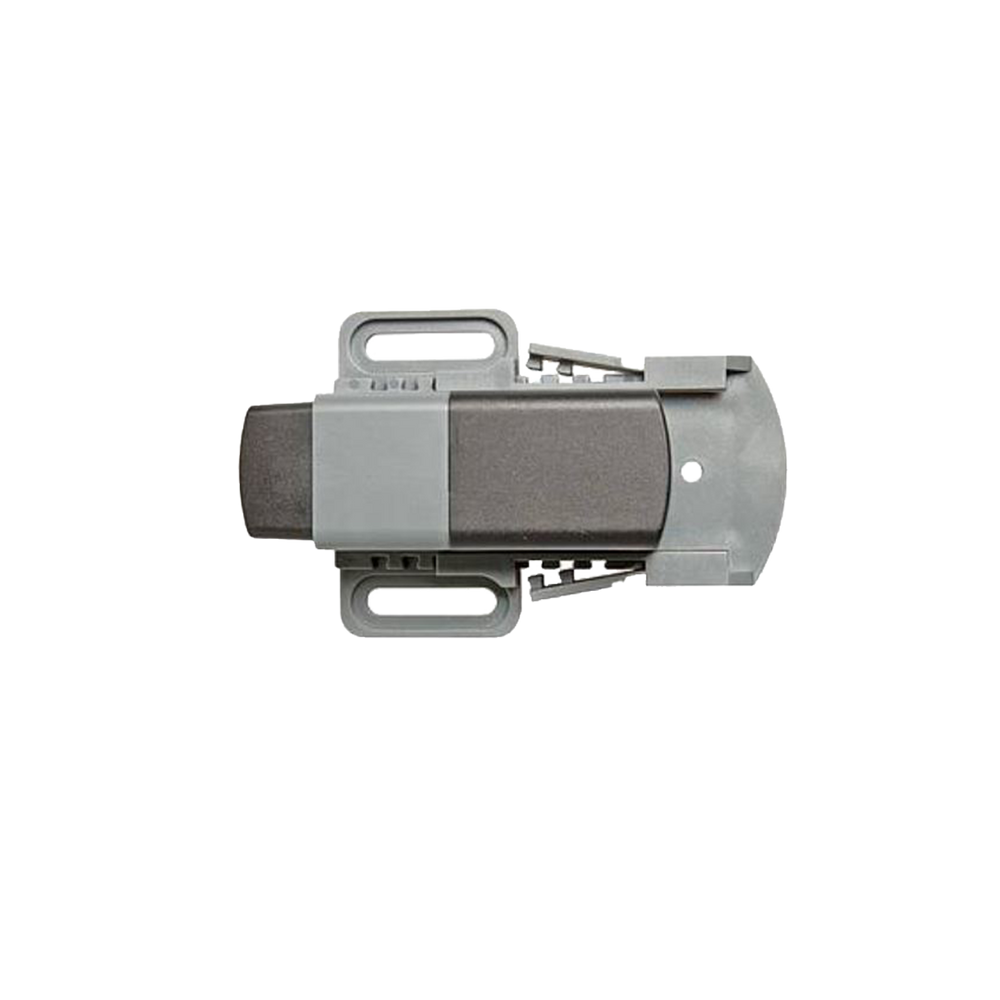

Stego Door switch, screw, c/o, 250VAC, 8 (1.5) A

SKU / Article No. 01350.0-00
Product Type Control Panel
Back Order
View Full Product Details on Stego 💬 Ask an Expert - Technical Support Available

Product Description

The door switch monitors the position of cabinet doors and is available in three versions. For example, it can be used for switching a light when opening a door (NC), or to activate a fan when closing a door (NO). The version with change-over contact (CO) can be used as a normally closed and/or normally open contact. The wide mechanical adjustment range of the door switch DS 013 offers versatile application areas: the housing is adjustable within a 35 mm range, while the screw flange with a slotted hole offers an additional 21 mm. The switching travel of the switch itself is another 8 mm.

\n
    \n
  • Adjustable positioning without tools
    • \n
  • High switching capacity
    • \n
  • Strain relief
    • \n
  • Different cladding diameters
    • \n
  • Suitable for lamp LED 025
    • \n

Technical Specifications

IP Rating / DetailedIP20
IP RatingIP20
Compliance/CertificationsUL + VDE intended
Temperature: Operating–20 °C to 85 °C
Part Depth (mm)30 mm
Part Width (mm)64 mm
Part Height (mm)87 mm
Weight (g)50 g
Material: Product HousingPlastic
Connection Type4-pole clamp with strain relief, clamping torque 0.5 Nm max.
Mounting TypeM5 screws (not included)
Operating PeriodVDE: > 10 000 cycles, UL: > 6 000 cycles
ColourBlack/Grey
