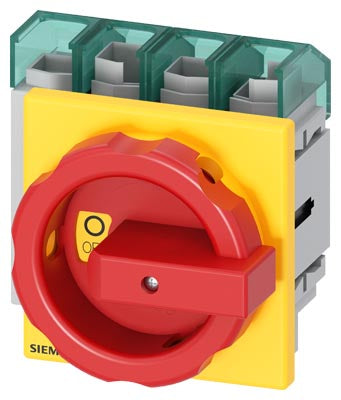

Siemens Switch disconnector, 4-pole, 63A max current, 63A fuse current Part number 3LD5220-0TL13

EAN / Barcode 4001869584164
Product Type Control Panel
Product Class Switch disconnector (low voltage)
ETIM Class Switch disconnector (low voltage)
Out of Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

SENTRON 3LD5 switch disconnector

The SENTRON 3LD5 switch disconnector is designed for the safe shutdown of loads in industrial machinery, featuring robust UL and IEC approvals.

Technical details:

  • Type: EMERGENCY-OFF switch
  • Poles: 4-pole
  • Approval: UL 489, UL 60947-4-1, IEC 60947-3
  • UL: 60 A
  • SCCR: 50 kA at 480 V AC
  • Operational power @ 480 V AC 3-phase: 40 hp
  • IEC: 63 A
  • Operational power at AC-23 A at 400 V: 30 kW
  • Front-mounted with a rotary operating mechanism
  • Color: red/yellow
  • 4-hole mounting of the handle
  • Includes terminal covers for the infeed side
  • Modular design for easy mounting of auxiliary switches, N-PE terminal, or 4th pole
  • Disconnection capability from 16 A to 160 A
  • Suitable for NAFTA states due to UL489 certification
  • Wide range of variants available for different mounting options
  • Certified as a manual motor control system according to UL60947-4-1
  • Variants available for DC applications

Customer benefits:

  • Optimum disconnection capability ensures safety for users and systems
  • Fast and easy mounting process enhances efficiency
  • Versatility from international approvals expands application range
  • Wide range of accessories makes it suitable as a main disconnector

Technical Specifications

Colour control elementRed
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)Other
Depth108 mm
Device constructionBuilt-in device fixed built-in technique
Height104 mm
InterlockableYes
Max. rated operation voltage Ue AC690 V
Number of poles4
Number of switches1
Rated operation power at AC-23, 400 V30 kW
Rated operation power at AC-3, 400 V30 kW
Rated permanent current at AC-21, 400 V63 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current Iu63 A
Rated short-time withstand current lcw2 kA
Suitable for front mounting 4-holeYes
Type of control elementShort thumb-grip
Type of electrical connection of main circuitFrame clamp
Version as emergency stop installationYes
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Width103 mm
