Siemens

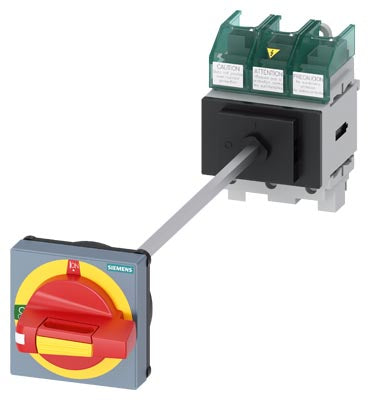

Siemens Switch disconnector, 3-pole, 63A max and fuse current Part number 3LD5210-0TK13

EAN / Barcode 4001869584089
Product Type Control Panel
Product Class Switch disconnector (low voltage)
ETIM Class Switch disconnector (low voltage)
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

SENTRON 3LD5 Switch Disconnector

The SENTRON 3LD5 switch disconnector serves as an EMERGENCY-OFF switch with versatile applications in industrial machinery and is approved for multiple safety standards.

Technical details:

  • 3-pole
  • Approved according to UL 489, UL 60947-4-1, and IEC 60947-3
  • UL: 60 A
  • SCCR 50 kA at 480 V AC
  • Operational power @ 480 V AC 3-phase: 40 hp
  • IEC: 63 A
  • Operational power at AC-23 A at 400 V: 30 kW
  • Floor mounting with door coupling
  • Defeatable rotary operating mechanism
  • EMERGENCY OFF
  • 4-hole mounting of the handle
  • Without tolerance compensation
  • Including terminal covers for the infeed side
  • Modular design
  • Fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole
  • Optimum disconnection of 16 A of 160 A from the power supply
  • Versatile due to international approvals
  • Ideal for export to NAFTA states
  • Large number of accessories available
  • Can be used as a manual motor control system
  • Available in a wide range of variants
  • 3LD2 also available in variants for DC applications

Customer benefits:

  • End-to-end safety for users and systems

Technical Specifications

Colour control elementRed
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)Other
Depth408 mm
Device constructionBuilt-in device fixed built-in technique
Height106 mm
InterlockableYes
Max. rated operation voltage Ue AC690 V
Number of poles3
Number of switches1
Rated operation power at AC-23, 400 V30 kW
Rated operation power at AC-3, 400 V30 kW
Rated permanent current at AC-21, 400 V63 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current Iu63 A
Rated short-time withstand current lcw2 kA
Suitable for floor mountingYes
Suitable for front mounting 4-holeYes
Type of control elementDoor coupling rotary drive
Type of electrical connection of main circuitFrame clamp
Version as emergency stop installationYes
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Width75 mm
View complete specifications on Siemens
