Siemens Switch disconnector, 3-pole, 100A max current, 100A fuse current
View on Siemens 📄 Datasheet
Siemens

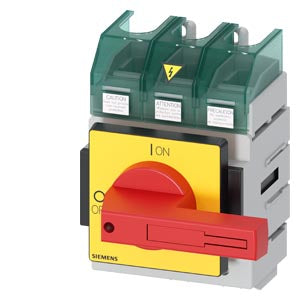

Siemens Switch disconnector, 3-pole, 100A max current, 100A fuse current Part number 3LD5400-0TK13

EAN / Barcode 4001869575414
Product Type Control Panel
Product Class Switch disconnector (low voltage)
ETIM Class Switch disconnector (low voltage)
Out of Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

SENTRON 3LD5 switch disconnector

The SENTRON 3LD5 switch disconnector is designed for the safe shutdown of loads in various industrial machinery applications.

Technical details:

  • Type: EMERGENCY-OFF switch
  • Poles: 3-pole
  • Approvals: UL 489, UL 60947-4-1, IEC 60947-3
  • Current rating: 100 A
  • SCCR: 65 kA at 480 V AC
  • Operational power @ 480 V AC 3-phase: 60 hp
  • Operational power at AC-23 A at 400 V: 45 kW
  • Mounting: floor mounting with direct operating mechanism
  • Color: red/yellow including terminal covers for the infeed side
  • Modular design for fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole
  • Locking capability of the rotary operating mechanism for optimum disconnection of 16 A of 160 A
  • Versatile with international approvals, ideal for export to NAFTA states
  • Available in various mounting options: front mounting, mounting plate, DIN rail, or installation in distribution boards
  • Options for direct or door-coupling rotary operating mechanism
  • Variant for DC applications: 3LD2

Customer benefits:

  • End-to-end safety for users and systems
  • Particularly suitable as a main disconnector due to a large number of accessories
  • Certified for use as a manual motor control system

Technical Specifications

Colour control elementRed
Degree of protection (IP), front sideIP00
Depth158 mm
Device constructionBuilt-in device fixed built-in technique
Height178 mm
InterlockableYes
Max. rated operation voltage Ue AC690 V
Number of poles3
Number of switches1
Rated operation power at AC-3, 400 V45 kW
Rated permanent current at AC-21, 400 V100 A
Rated permanent current at AC-23, 400 V100 A
Rated permanent current Iu100 A
Rated short-time withstand current lcw4 kA
Suitable for floor mountingYes
Type of control elementToggle
Type of electrical connection of main circuitFrame clamp
Version as emergency stop installationYes
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Width113 mm
View complete specifications on Siemens
