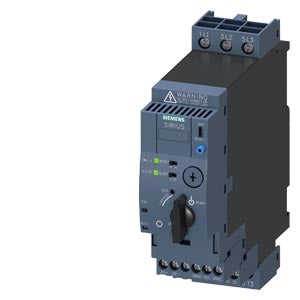

Siemens Sirius Compact load feeder DOL starter, 690V, 8 - 32A Part number 3RA6120-1EP32

Name: Siemens Sirius Compact load feeder DOL starter, 690V, 8 - 32A
Brand: Siemens
SKU: 3RA6120-1EP32

EAN / Barcode 4011209714694

Product Type Control Panel

Product Class Motor starter/motor starter combination

ETIM Class Motor starter/motor starter combination

Back Order

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

✓ RoHS Declaration

Product Description

Product Overview

SIRIUS Compact load feeder DOL starter featuring 690 V operating voltage, 110...240 V AC/DC control voltage at 50...60 Hz frequency, with current rating of 8...32 A and IP20 protection rating. This direct-on-line starter provides reliable motor control with screw terminal connections for both main circuit and auxiliary circuit applications.

Key Specifications:

Electrical Characteristics:

Operating Voltage: 690 V
Control Voltage: 110...240 V AC/DC
Frequency: 50...60 Hz
Current Rating: 8...32 A
Protection Rating: IP20

Physical Characteristics:

Net Weight: 1.520 kg
Packaging Dimensions: 181.50 x 228.50 x 59.50 mm
Packaging Quantity: 1 piece

Product Details:

Article Number: 3RA6120-1EP32
EAN: 4011209714694
Country of Origin: Germany
Product Lifecycle: PM300 Active Product
Product Phase-out: Since 01.07.2026

Connection Types:

Main Circuit Connection: Screw terminal
Auxiliary Circuit Connection: Screw terminal

Compliance & Standards:

RoHS Compliant: Since 01.05.2012
WEEE Take-Back Obligation: Yes
Export Control: AL: N / ECCN: N

REACH Information: Contains substances of very high concern including Lead, Lead monoxide, 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, and Lead titanium zirconium oxide in concentrations higher than 0.1% w/w. These substances do not pose risk when used as intended.

Product Classification:

eClass: 27-37-09-05
ETIM: EC001037
UNSPSC: 39-12-15-21

Download existing graphical data for this product:

Product Datasheet (PDF)

Technical Specifications

Ambient temperature, upper operating limit	60 °C
Compliance/Standards	IEC 61000-4, IEC 61508, IEC 60529, IEC 60947-6, IEC 61000-, IEC 81346-2
Coordination class according to IEC 60947-4-3	Class 2
country_of_origin	Germany
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
Depth	165 mm
description	SIRIUS Compact load feeder DOL starter 690 V 110...240 V AC/DC 50...60 Hz 8...32 A IP20 Connection main circuit: screw terminal Connection auxiliary circuit: screw terminal
External reset possible	Yes
Height	170 mm
IP Rating	IP20
IP Rating Detailed	IP20 touch protection on the front according to IEC 60529 finger, IP20 Connection main circuit
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of command positions	1
Number of indicator lights	2
Overload release current setting	32 A
Part Depth (mm)	59,50mm
Part Height (mm)	228,50mm
Part Width (mm)	181,50mm
Rail mounting possible	Yes
Rated control supply voltage AC 50 Hz	110 V
Rated control supply voltage AC 60 Hz	240 V
Rated control supply voltage DC	240 V
Rated operation current at AC-3, 400 V	32 A
Rated operation current Ie	32 A
Rated operation power at AC-3, 400 V	15 kW
Release class	Adjustable
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Type of motor starter	Direct online starter (DOL)
Voltage type for actuating	AC/DC
Weight (g)	1,520 Kg
Width	45 mm
With short-circuit release	Yes
