Product Overview

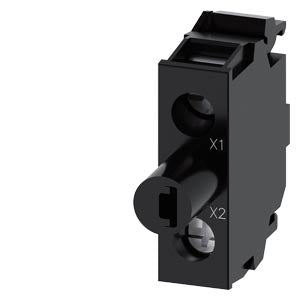

LED module with integrated LED 230 V AC, white, screw terminal, for floor mounting

Article Number: 3SU1401-2BF60-1AA0

Key Features:

• Voltage Rating: 230V AC
• LED Color: White
• Connection Type: Screw terminal for secure installation
• Mounting: Floor mounting design for base applications
• Series: SIRIUS ACT
• Application: For illuminating SIRIUS ACT command and signaling devices in floor-mounted configurations

Technical Specifications:

• Operating Voltage: 230V AC (50/60 Hz)
• Forward Current: 20 mA
• Protection Rating: IP20, IP40
• Net Weight: 0.010 kg
• Packaging Dimensions: 35.00 x 35.00 x 10.00 mm
• Quantity Unit: 1 Piece
• EAN: 4011209943971
• UPC: 804766074400
• Country of Origin: Czech Republic

Product Benefits:

• Floor Mounting Design: Specifically engineered for base-mounted applications and floor-level installations
• High-Voltage Operation: 230V AC operation for direct connection to standard industrial power systems without transformers
• High-Brightness White LED: Provides excellent illumination with neutral white light for general purpose indication and enhanced visibility
• Energy-Efficient LED Technology: Delivers brilliant luminosity even with higher voltage operation
• Integrated Design: LED module with built-in LED eliminates need for separate lamp components
• Robust Construction: Designed for industrial environments with high protection against dust, oils, and caustic solutions
• Secure Connection: Screw terminal provides reliable electrical connection for critical high-voltage applications
• Direct Line Connection: No need for external transformers or voltage converters in 230V AC systems
• Universal Application: White LED suitable for general illumination and neutral status indication
• Compact Design: Optimized 35x35x10mm packaging for efficient space utilization
• Reliable Performance: Engineered for long service life in demanding floor-mounted installations

Applications: Perfect for floor-mounted SIRIUS ACT pushbuttons and indicator lights in industrial control systems, machinery interfaces, and automation systems where ground-level visual indication and control are required with direct 230V AC power connection. Ideal for applications requiring white illumination for general purpose indication, neutral status signaling, or where maximum brightness and visibility are essential in manufacturing and process control environments where 230V AC power is readily available. White LEDs are particularly effective for general lighting applications and situations where color-neutral indication is preferred.

Compliance & Certifications:

• RoHS Compliant: Since 01.10.2014
• WEEE Directive: Take-back obligation applies
• Export Control: AL: N / ECCN: EAR99
• Product Class: A - Standard stock item

REACH Regulation Notice: This product contains substances from the candidate list in concentrations higher than 0.1% w/w:

• Lead monoxide (lead oxide)
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current information, these substances do not pose risk when used as intended. Please refer to product documentation for complete details.

Download existing graphical data for this product:

• System Manual - SIRIUS ACT 3SU1 Pushbuttons and Signaling Devices
• Technical Documentation
• Product Datasheet
• Additional Product Information
