Siemens Siplus ET 200SP Digital input module, DI 16x 24VDC
View on Siemens 📄 Datasheet
Siemens

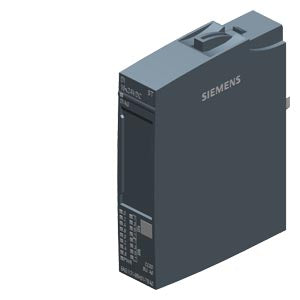

Siemens Siplus ET 200SP Digital input module, DI 16x 24VDC Part number 6AG1131-6BH01-7BA0

EAN / Barcode 4047618090036
Product Type Control Panel
Product Class Fieldbus, decentr. periphery - digital I/O module
ETIM Class Fieldbus, decentr. periphery - digital I/O module
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Product Overview

The SIPLUS ET 200SP DI 16x24V DC is a robust digital input module designed for extreme environmental conditions. Based on the standard 6ES7131-6BH01-0BA0 with enhanced conformal coating protection, this 16-channel digital input module provides reliable signal acquisition in challenging industrial environments with extended temperature ranges from -40°C to +70°C.

Key Features & Specifications

  • Temperature Range: Extended operation from -40°C to +70°C with conformal coating protection
  • Input Channels: 16 digital inputs, 24V DC operation
  • Input Type: Type 3 (IEC 61131) sink input, PNP sinking input configuration
  • Supply Voltage: 19.2-28.8V DC nominal range
  • Input Delay: Configurable 0.05-20 ms input delay time
  • Compatibility: Suitable for BU type A0, color code CC00
  • Diagnostics: Module diagnostics for wire break and supply voltage monitoring
  • Dimensions: Compact design - Width 15 mm x Height 73 mm x Depth 58 mm
  • Input Current: 2.5 mA per signal channel
  • Protection: Conformal coating for harsh environmental resistance

Applications & Features

Ideal for distributed I/O applications requiring extreme environmental resistance in industrial automation systems. Perfect for challenging environments with exposure to biologically, chemically, and physically active substances. Features modular and scalable design suitable for small control boxes near machines, with capability for direct connection to ET 200SP CPU or central controller via PROFINET or PROFIBUS. Supports up to 64 I/O modules in any combination configuration.

Compliance & Certifications

  • Weight: 0.037 kg, Packaging: 6.50 x 7.80 x 2.30 cm
  • Standards: RoHS compliant (since April 2018), WEEE compliant
  • Origin: Germany, EAN: 4047618090036, UPC: 804766690747
  • Safety: Contains REACH substances (Lead, Lead monoxide) at <0.1% w/w - no risk when used as intended

Download existing graphical data for this product:

Technical Specifications

Compliance/StandardsIEC 60068-, EN 60721-3, EN 60721, IEC 61131, EN 60068-2, EN 60664-3, EN 61086, EN 60654-4
country_of_originGermany
Degree of protection (IP)IP20
Depth58 mm
descriptionSIPLUS ET 200SP DI 16x24 V DC standard based on 6ES7131-6BH01-0BA0 with conformal coating, -40…+70 °C, digital input module, suitable for BU type A0, color code CC00, type 3 (IEC 61131) sink input, (PNP, sinking input), input delay 0.05..20 ms module diagnostics for: wire break, supply voltage
Digital inputs configurableYes
Fieldbus connection over separate bus coupler possibleYes
Height73 mm
Input current at signal 12.5 mA
Number of digital inputs16
Part Depth (mm)2,30mm
Part Height (mm)7,80mm
Part Width (mm)6,50mm
Permitted voltage at input-30 V
Rail mounting possibleYes
Supply voltage DC28.8 V
System accessoryYes
Time delay at signal change20 ms
Type of voltage (input voltage)DC
Voltage type (supply voltage)DC
Weight (g)0,037 Kg
Width15 mm
View complete specifications on Siemens
