Product Overview The SIPLUS ET 200SP BU15-P16+A0+2B is a robust industrial base unit designed for extreme environmental conditions. Based on the standard 6ES7193-6BP00-0BA0 with enhanced conformal coating protection, this compact BU type A0 base unit provides reliable I/O system connectivity in challenging industrial environments with extended temperature ranges from -40°C...
Vendor: Siemens
SKU: 6AG1193-6BP00-7BA0
Availability: In stock
Product type: Control Panel
Please hurry! Only 16 left in stock
Ask an expert
Description
Description
x

Product Overview

The SIPLUS ET 200SP BU15-P16+A0+2B is a robust industrial base unit designed for extreme environmental conditions. Based on the standard 6ES7193-6BP00-0BA0 with enhanced conformal coating protection, this compact BU type A0 base unit provides reliable I/O system connectivity in challenging industrial environments with extended temperature ranges from -40°C to +70°C.

Key Features & Specifications

  • Temperature Range: Extended operation from -40°C to +70°C with conformal coating protection
  • Base Unit Type: BU type A0 for SIMATIC ET 200SP distributed I/O system
  • Terminals: 16 push-in terminals from process to peripheral module
  • Configuration: Without AUX terminals, bridged to the left

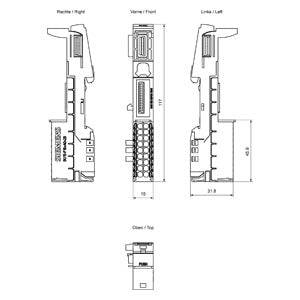

  • Dimensions: Compact design - Width 15 mm x Height 117 mm x Depth 35 mm
  • Supply Voltage: Nominal 24V DC (19.2-28.8V DC range)
  • Connection: Cross-section range 0.14-2.5 mm² (AWG 26-14)
  • Protection: IP20 degree of protection, conformal coating for harsh environments
  • Mounting: Standard DIN rail mounting for control cabinet installation

Applications & Features

Ideal for multifunctional distributed I/O applications requiring extreme environmental resistance. Perfect for challenging industrial environments with exposure to biologically, chemically, and physically active substances. Features scalable design for precise on-site requirements, high mechanical strength when mounted with other components, and forms internal buses for station connectivity. Supports wide range of communication protocols with high-speed data transmission.

Compliance & Certifications

  • Weight: 0.047 kg, Packaging: 4.00 x 12.20 x 2.50 cm
  • Standards: RoHS compliant (since Sept 2014), ATEX gas-ex-protection Cat. 3G
  • Origin: Germany, EAN: 4047618043261, UPC: 887621207120
  • Safety: Contains REACH substances (Lead) at <0.1% w/w - no risk when used as intended

Download existing graphical data for this product:

Specifications
Specifications
x
Compliance/StandardsIEC 60068-, EN 60721-3, EN 60721, EN 60068-2, EN 60664-3, EN 61086, EN 60654-4
Part Width (mm)4,00mm
Part Height (mm)12,20mm
Part Depth (mm)2,50mm
Weight (g)0,047 Kg
descriptionSIPLUS ET 200SP BU15-P16+A0+2B based on 6ES7193-6BP00-0BA0 with conformal coating, -40…+70 °C, BU type A0, push-in terminals, without AUX terminals, bridged to the left, WxH: 15 mm x 117 mm,
country_of_originGermany
