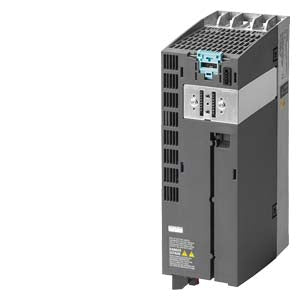

Siemens Sinamics PM240-2 Power module, c/w breaking chopper

Product Overview

SINAMICS PM240-2 power module with built-in Class A filter and integrated braking chopper for SINAMICS G120 drive systems. 3AC 380-480V input (+10/-10% tolerance), 47-63Hz frequency range. High overload capability: 4kW for 200% 3s, 150% 57s, 100% 240s at -10°C to +50°C ambient temperature. Low overload capability: 5.5kW for 150% 3s, 110% 57s, 100% 240s at -10°C to +40°C ambient temperature. Article Number: 6SL3210-1PE21-4AL0.

Key Specifications

Electrical Ratings:

• Input voltage: 3AC 380-480V (+10/-10% tolerance)
• Input frequency: 47-63Hz
• High overload output: 4kW (200% for 3s, 150% for 57s, 100% for 240s)
• Low overload output: 5.5kW (150% for 3s, 110% for 57s, 100% for 240s)
• Input current: 17.2A
• Output current: 13.2A
• Output frequency: 0-550Hz

Performance and Overload Characteristics:

• High overload mode: Ambient temperature -10°C to +50°C
• Low overload mode: Ambient temperature -10°C to +40°C
• Multiple overload profiles for different application requirements
• Optimal thermal management for demanding applications

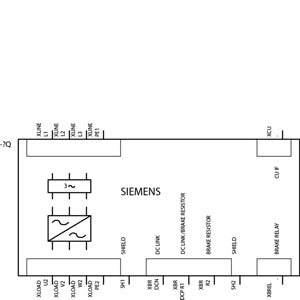

Integrated Features:

• Built-in Class A line filter for EMC compliance
• Integrated braking chopper for regenerative energy handling
• Compact design optimized for space-saving installations
• No external line reactor required for this frame size

Control and Compatibility:

• Compatible with SINAMICS G120 control units
• Approved for Control Unit firmware version V4.6
• Modular design allows flexible system configuration
• Application-oriented control modules with expanded I/O functionality

Physical Specifications

• Frame size: FSB

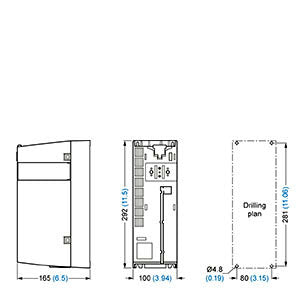

• Dimensions: 291 x 100 x 165 mm (H x W x D)
• Net weight: 3.100 kg
• Degree of protection: IP20
• Mounting: Standard DIN rail or panel mounting

Product Identifiers

• EAN: 4042948666050
• UPC: 887621780012
• Country of origin: Great Britain

Compliance Information

• RoHS compliant since 01.07.2006
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: N

REACH Regulation Information This product includes articles in which the following substances from the candidate list are contained in concentrations higher than 0.1% weight by weight (w/w):

• Lead
• Diboron trioxide

Based on currently available information, these substances do not pose any risk if the articles are used as intended (including disposal). Please refer to product documentation for additional details.

Download existing graphical data for this product:

Product Datasheet

SINAMICS G120 Power Module PM240-2 Manual

Product Support Page
