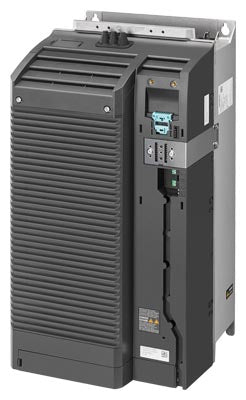

Siemens SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER Part number 6SL3210-1PE28-8UL0

Product Overview

The Siemens 6SL3210-1PE28-8UL0 is a power module from the SINAMICS G120 PM240-2 family, designed for three-phase mains operation at 380-480 V AC (±10 %) and 47-63 Hz. It features a built-in braking chopper and is configured for IP20 protection (open-type) without integrated filter. The module supports a high overload capability (200% for 3 s) and is tailored for industrial inverter applications requiring robust performance, compact mounting and reliable thermal rating.

Key Features

• Three-phase power module for mains voltages 380-480 V AC, 47-63 Hz
• Built-in braking chopper functionality to support dynamic braking applications
• High overload capability: 200% rating for 3 seconds; 150% continuous rating per cycle time specifications
• Frame size E, module width/height optimized for cabinet integration and IP20 open-type enclosure
• Designed for industrial use with wide ambient temperature range and converter control from 0…550 Hz output

Technical Specifications

• Article Number: 6SL3210-1PE28-8UL0
• Rated Output Power (LO – base load, 400 V): 45 kW
• Rated Output Power (HO – high overload): 37 kW
• Rated Current (LO base load): 90 A
• Rated Current (HO overload): 75 A
• Input Line Voltage: 3-phase AC 380…480 V ±10 %; 47–63 Hz
• Output Frequency Range: 0…550 Hz (depending on control mode)
• Overload Capability: 150% for 57 s; 200% for 3 s (cycle time 300 s) per specification
• Ambient Temperature (HO rating): –20 °C…+50 °C
• Protection Rating: IP20 (open-type enclosure, requires proper ventilation)
• Dimensions (Frame size E): Height 551 mm; Width ~275 mm; Depth ~237 mm
• Weight: ~26 kg (without filter) for this variant
• Installation Altitude: Up to 1000 m standard (derating may apply above)

Compliance & Certifications

• Complies with relevant CE marking and low-voltage directives for industrial drives
• Designed for over-voltage category III and pollution degree 2 environments; UL/CSA open type-rated as applicable

Applications

Ideal for heavy-duty industrial motor applications where a high-performance inverter module is required — for example in large pumps, fans, compressors, material handling systems and process drives. The 6SL3210-1PE28-8UL0 is suited for 45 kW class drives on 400 V mains and offers ahead-of-time capability for overload pulses, dynamic braking support and compact cabinet footprint for modern automation installations.
