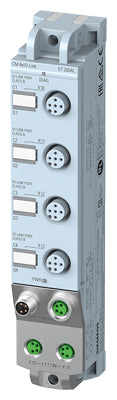

Siemens Simatic Sensor box, M12, 4-port, IP67 Part number 6ES7147-5JD00-0BA0

Product Overview

The Siemens SIMATIC Sensor Box 6ES7147-5JD00-0BA0 is a compact IO-Link communication module from the ET200AL series, featuring 4 M12 ports and an IP67 protection rating. Designed for flexible and decentralized installation, it serves as a robust IO-Link master unit supporting both sensor and actuator connections in harsh industrial environments. With support for SIO and IO-Link operating modes, this module ensures efficient signal processing, high diagnostic capability, and reliable data exchange across automation networks.

Key Features

• 4-port IO-Link master module with M12 connectors (Class B)
• Supports IO-Link communication (COM1, COM2, COM3) and SIO standard I/O operation
• Compact, lightweight sensor box design for decentralized ET200AL systems
• Integrated LED indicators for module status, supply voltage, and port diagnostics
• High protection rating: IP67 — suitable for wet and dusty environments
• Parameter storage for fast device replacement and simplified maintenance
• Designed for use with SIMATIC controllers and the ET200AL distributed I/O system

Technical Specifications

• Product Series: SIMATIC ET200AL
• Article Number: 6ES7147-5JD00-0BA0
• Type: Sensor Box / IO-Link Master Module
• Ports: 4 × M12 (Class B)
• Communication: IO-Link (COM1: 4.8 kBd, COM2: 38.4 kBd, COM3: 230.4 kBd)
• Operating Voltage: 24 V DC
• Protection Class: IP67
• Ambient Operating Temperature: –25 °C to +55 °C
• Dimensions: Approx. 30 mm (W) × 159 mm (H) × 34 mm (D)
• Mounting: Direct machine or field installation (ET200AL system)

Compliance & Certifications

• Complies with Siemens SIMATIC ET200AL system and IO-Link communication standards
• Manufactured and tested according to Siemens quality standards for industrial automation
• Designed for rugged, distributed field I/O applications in harsh environments

Applications

Ideal for distributed automation systems that require high-performance IO-Link connectivity for sensors and actuators. Commonly used in machine building, process control, packaging, logistics, and production systems that demand reliable data transmission, compact installation, and IP67 protection in field-level environments.
