Siemens

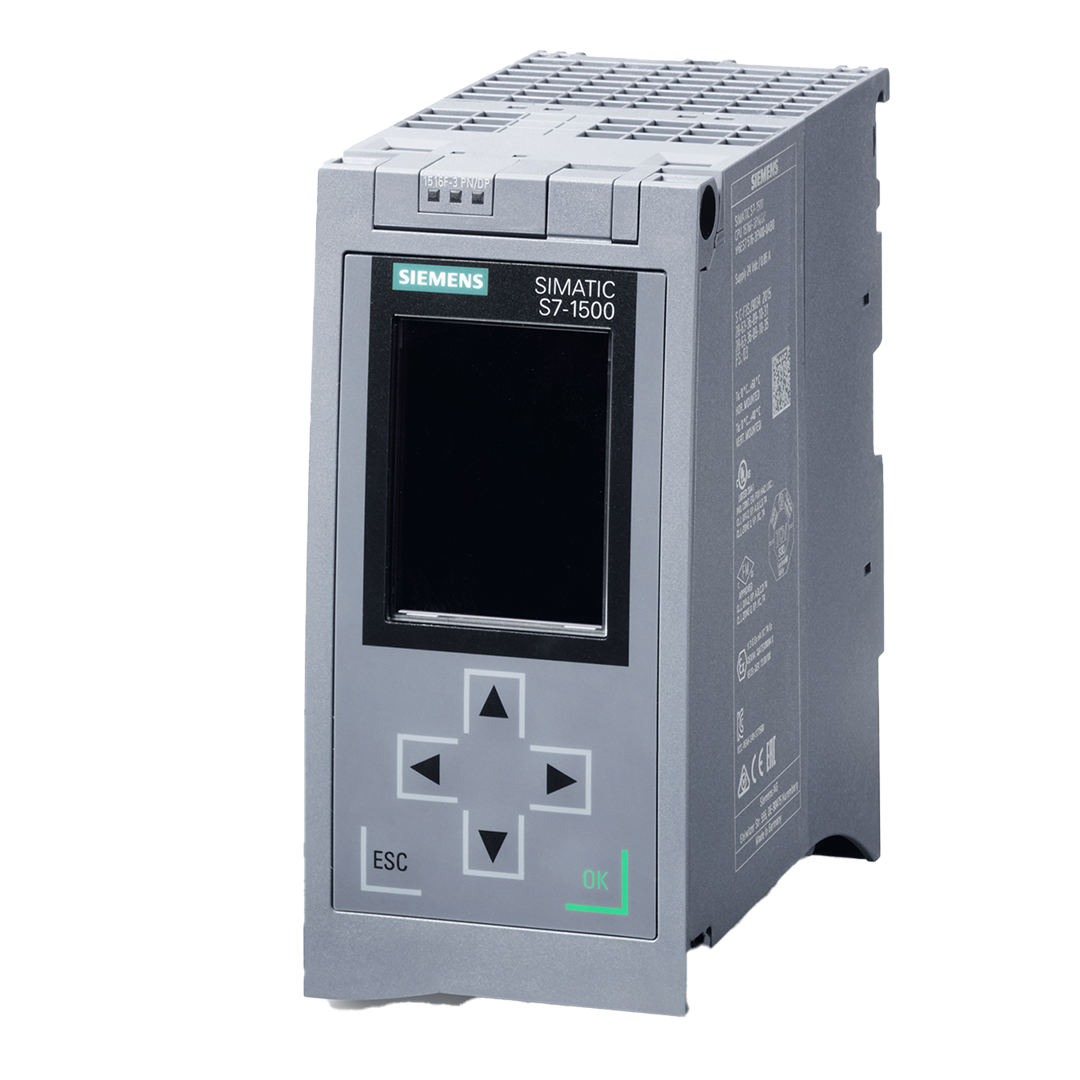

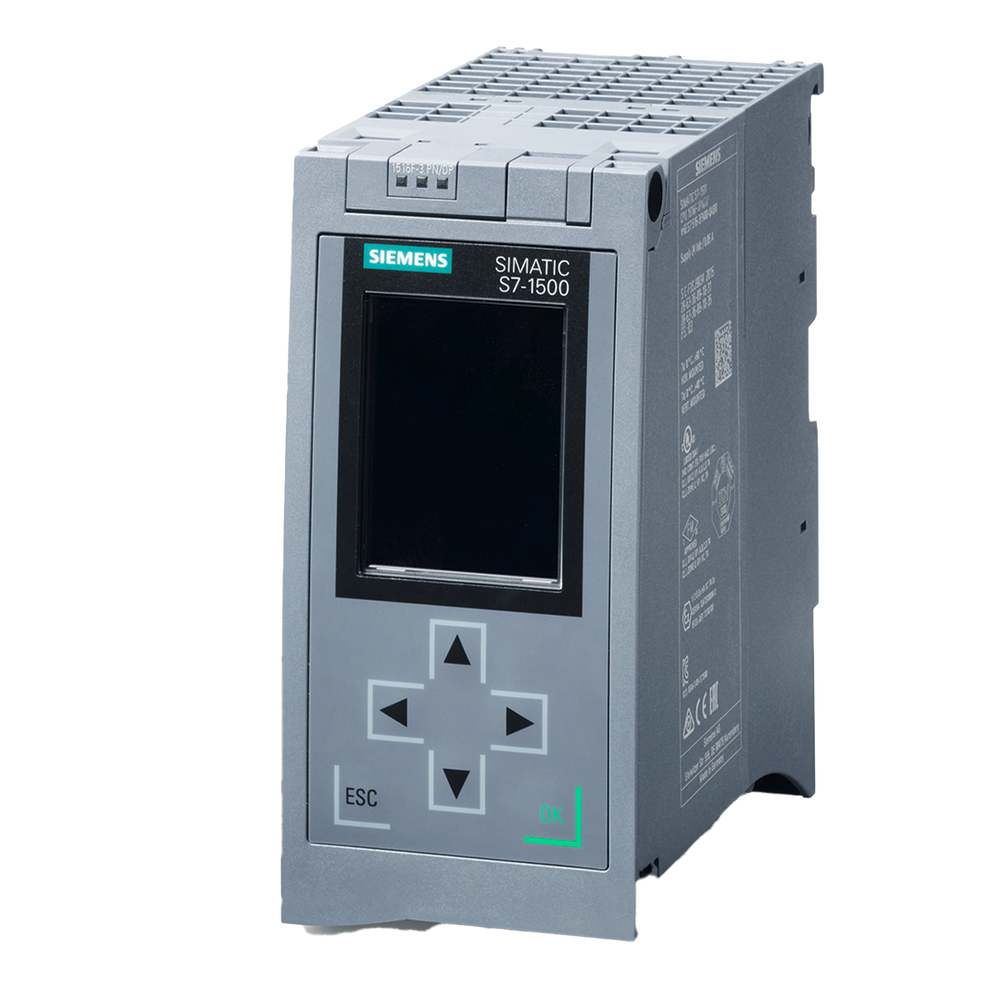

Siemens SIMATIC S7-1500F, CPU 1516F-3 PN/DP***Spare part*** Part number 6ES7516-3FN00-0AB0

EAN / Barcode 4025515081838
Product Type Control Panel
Product Class PLC CPU-module
ETIM Class PLC CPU-module
Back Order
💬 Ask an Expert - Technical Support Available

Product Description

Spare part

SIMATIC S7-1500F, CPU 1516F-3 PN/DP, Central processing unit with work memory 1.5 MB for program and 5 MB for data, 1st interface, PROFINET IRT with 2-port switch, 2nd interface, ETHERNET, 3rd interface, PROFIBUS, 10 ns bit performance, SIMATIC Memory Card required.

Technical Specifications

country_of_originGermany
Depth129 mm
description***Spare part*** SIMATIC S7-1500F, CPU 1516F-3 PN/DP, Central processing unit with work memory 1.5 MB for program and 5 MB for data, 1st interface, PROFINET IRT with 2-port switch, 2nd interface, ETHERNET, 3rd interface, PROFIBUS, 10 ns bit performance, SIMATIC Memory Card required
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Height147 mm
Memory size6500 kByte
ModelModular
Number of HW-interfaces industrial Ethernet2
Number of HW-interfaces RS-4851
Number of interfaces PROFINET2
Part Depth (mm)8,40mm
Part Height (mm)15,90mm
Part Width (mm)15,80mm
Processing time (1K, binary operation)0.009999999 ms
Rail mounting possibleYes
Suitable for safety functionsYes
Supply voltage DC19.2 V
Supporting protocol for ModbusYes
Supporting protocol for PROFIBUSYes
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeYes
Supporting protocol for TCP/IPYes
System accessoryYes
Type of memoryOther
Voltage type (supply voltage)DC
Weight (g)0,936 Kg
Width70 mm
With displayYes

Videos & Media

Product Overview

Overview, features and application examples
