Siemens Simatic S7-1500F Central processing unit, 450kb + 1.5mb Part number 6ES7513-1FL02-0AB0

Product Overview

The 6ES7513-1FL02-0AB0 is a SIMATIC S7-1500F CPU 1513F-1 PN central processing unit with 450KB work memory for program and 1.5MB for data. This safety-certified CPU features PROFINET IRT with 2-port switch and delivers 40ns bit performance for demanding industrial automation applications requiring functional safety capabilities.

Important Notice This product is cancelled since October 1, 2024 and is only available as a spare part. For new projects, please consider the successor product 6ES7513-1FM03-0AB0 which offers enhanced performance with 900KB program memory, 2.5MB data memory, and 6ns bit performance.

Key Features

• Processing Power: High-performance CPU with 40ns bit execution time
• Memory Configuration: 450KB work memory for program, 1.5MB for data
• Safety Certification: SIMATIC S7-1500F with integrated safety functions
• Communication Interface: PROFINET IRT with 2-port switch
• Real-Time Communication: Industrial Real-Time communication capability
• Memory Card: SIMATIC Memory Card required for operation
• Compact Design: Space-efficient S7-1500 standard form factor
• Operating Temperature: 0°C to +60°C
• Dimensions: Compatible with S7-1500 standard mounting rail
• Weight: 0.443 kg

Technical Specifications

• CPU Type: 1513F-1 PN with safety functions
• Work Memory: 450KB for program execution
• Data Memory: 1.5MB for data storage
• Bit Performance: 40ns bit execution time
• Communication Interface: PROFINET IRT with 2-port switch
• Real-Time Communication: Industrial Real-Time capability
• Network Integration: 2-port switch for flexible network topology
• Memory Card: SIMATIC Memory Card required (ordered separately)
• Processing Speed: Optimized for safety-critical applications
• Safety Functions: Integrated fail-safe operation

Applications

The CPU 1513F-1 PN was designed for safety-critical automation applications requiring functional safety capabilities. Originally used in manufacturing systems, process control, machine safety systems, and applications requiring fail-safe operation with PROFINET communication.

Safety Features

• Functional Safety: F-CPU with integrated safety functions
• Fail-Safe Operation: Designed for safety-critical applications
• Safety Communication: Safety-related communication capabilities
• Safety Certification: Compliant with international safety standards
• Safety Program Memory: Dedicated memory for safety programs
• Safety Diagnostics: Comprehensive safety diagnostic functions

Communication Capabilities

• PROFINET IRT: Industrial Real-Time communication with 2-port switch
• Network Topology: Flexible network configurations with integrated switch
• Real-Time Performance: Optimized for time-critical applications
• Integration: Seamless integration with SIMATIC systems
• Redundancy: Support for redundant communication paths
• Diagnostics: Comprehensive communication diagnostics

Successor Product Information

• Successor Model: 6ES7513-1FM03-0AB0
• Enhanced Performance: 6ns bit performance (vs. 40ns)
• Increased Memory: 900KB program memory (vs. 450KB)
• Extended Data Memory: 2.5MB data memory (vs. 1.5MB)
• Improved Capabilities: Enhanced processing power and memory capacity

Configuration Options

• STEP 7 (TIA Portal): Full configuration and programming support
• Safety Programming: Integrated safety function programming
• Communication Setup: PROFINET IRT interface configuration
• Diagnostic Configuration: Comprehensive diagnostic setup
• Memory Management: Flexible memory allocation
• Firmware Updates: Updateable firmware for enhanced functionality

Product Information

• Article Number: 6ES7513-1FL02-0AB0
• Net Weight: 0.443 kg
• Packaging Dimensions: 15.10 x 15.10 x 4.70 cm
• EAN: 4047623409151
• UPC: 804766570698
• Country of Origin: Germany
• Product Group: 4A7E

Compliance & Environmental

• RoHS Compliance: Yes (since 29.03.2018)
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Contains lead, lead monoxide, silicic acid lead salt, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, Bisphenol A, and bis(α,α-dimethylbenzyl) peroxide >0.1% w/w
• Export Control: ECCN: 9N9999 / AL: N
• Product Lifecycle: PM410:Product cancellation (cancelled since 01.10.2024)

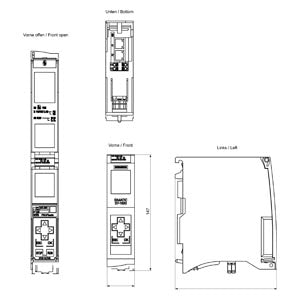

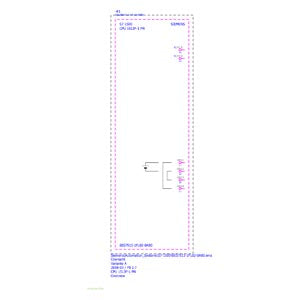

Download existing graphical data for this product:

• Technical Datasheet
• Firmware Update Information
